ULISSE DRIP air-stop for doors

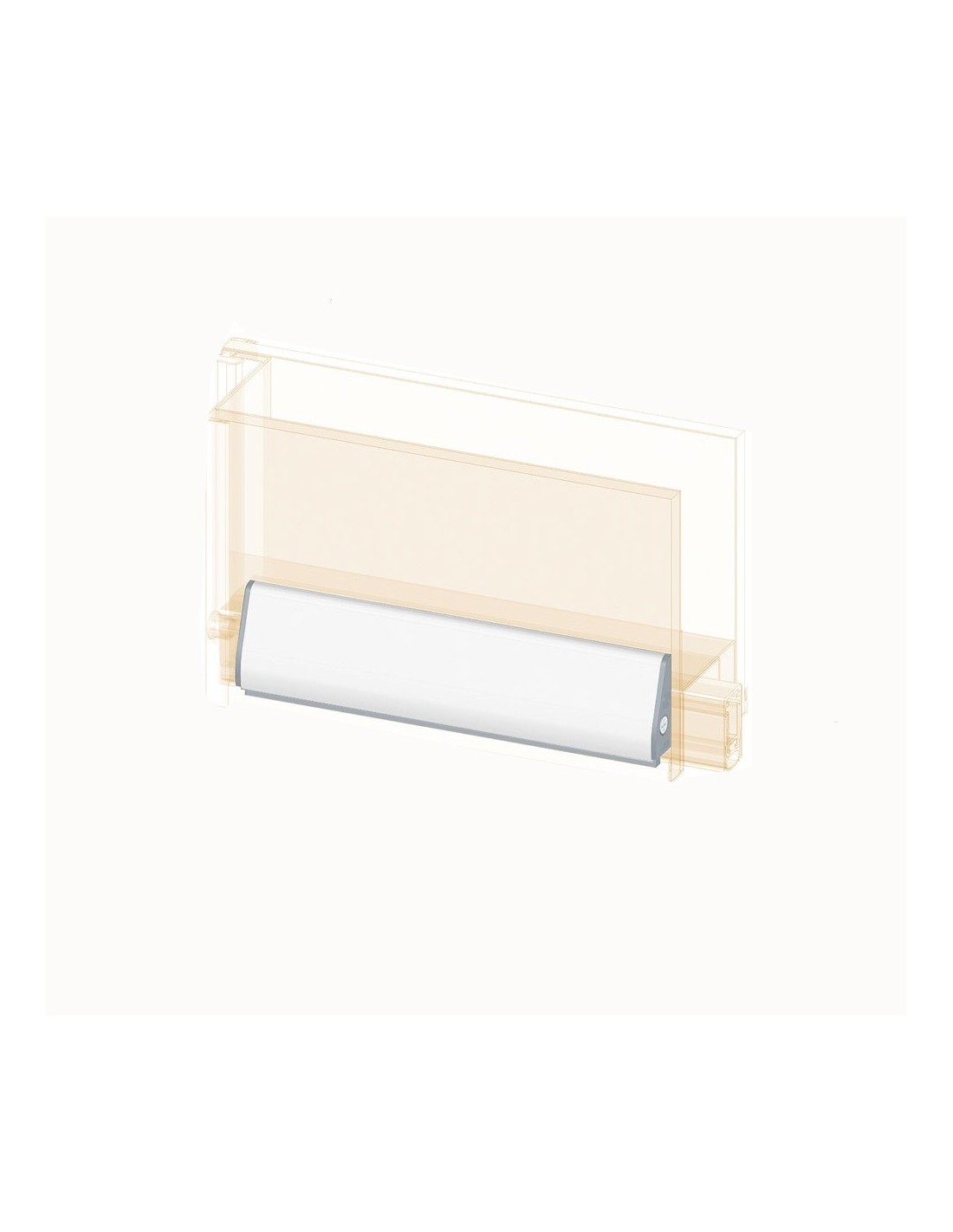

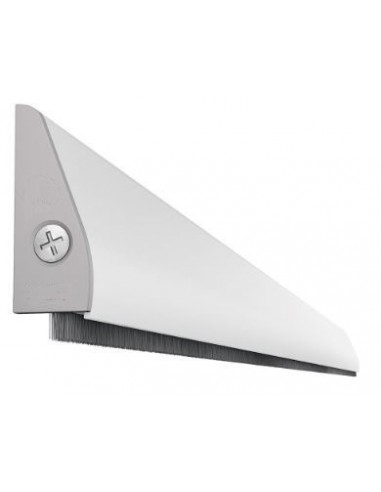

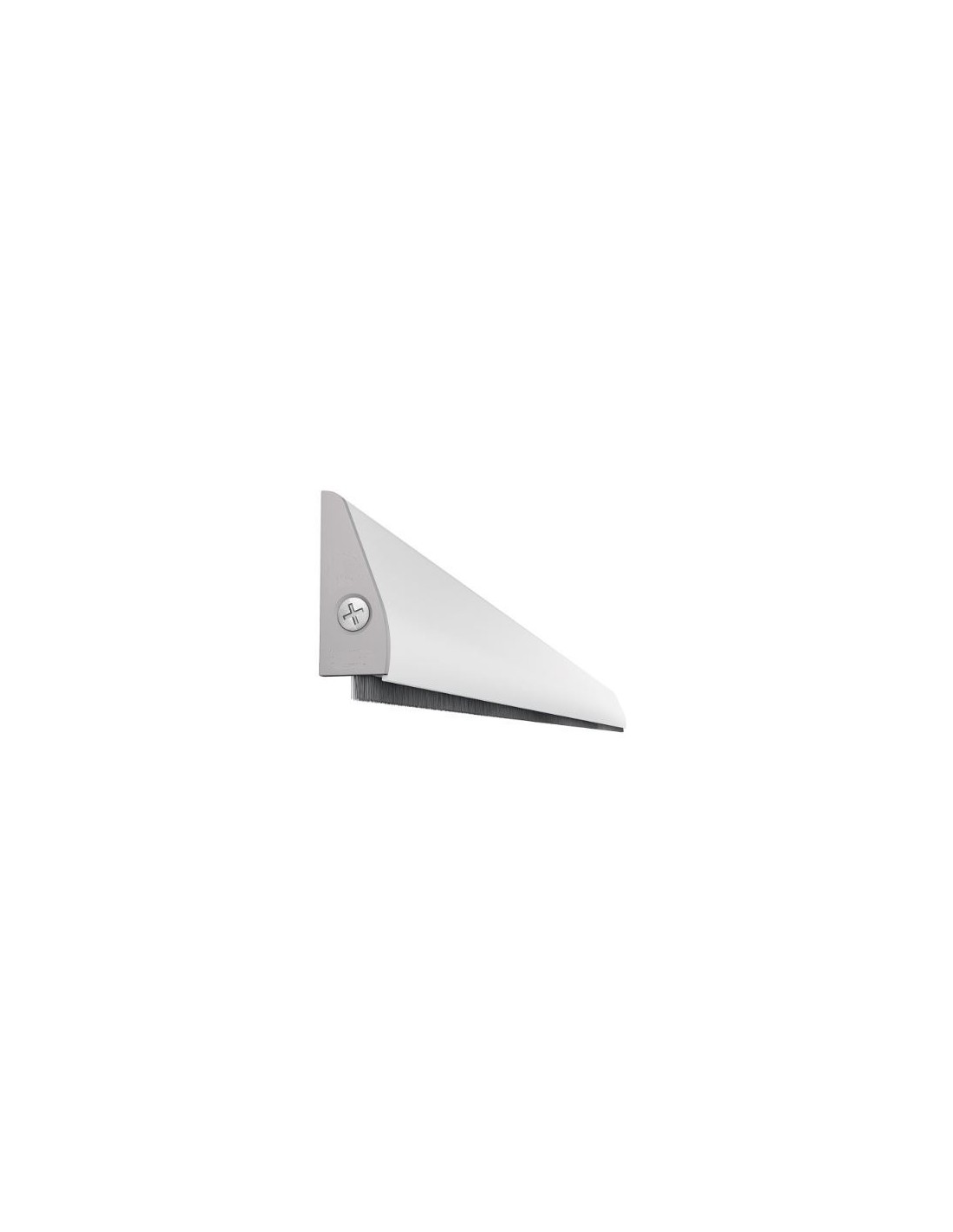

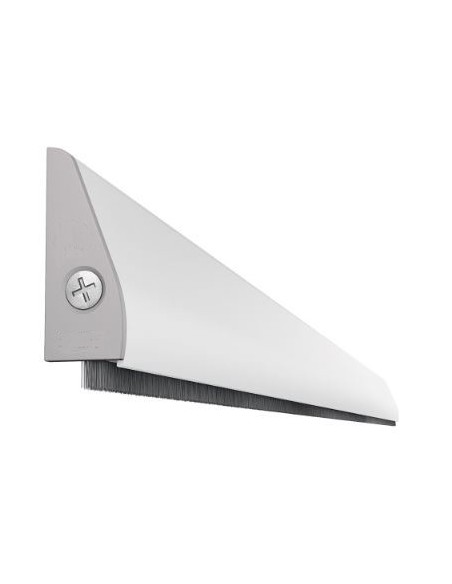

The ULISSE DRIP door drop-down seal – wind blocker is designed to enhance the performance of the ULISSE LIGHT by significantly improving water drainage and removal. It is installed using concealed screws and features a brush with a central PP fin to maximize sealing efficiency.

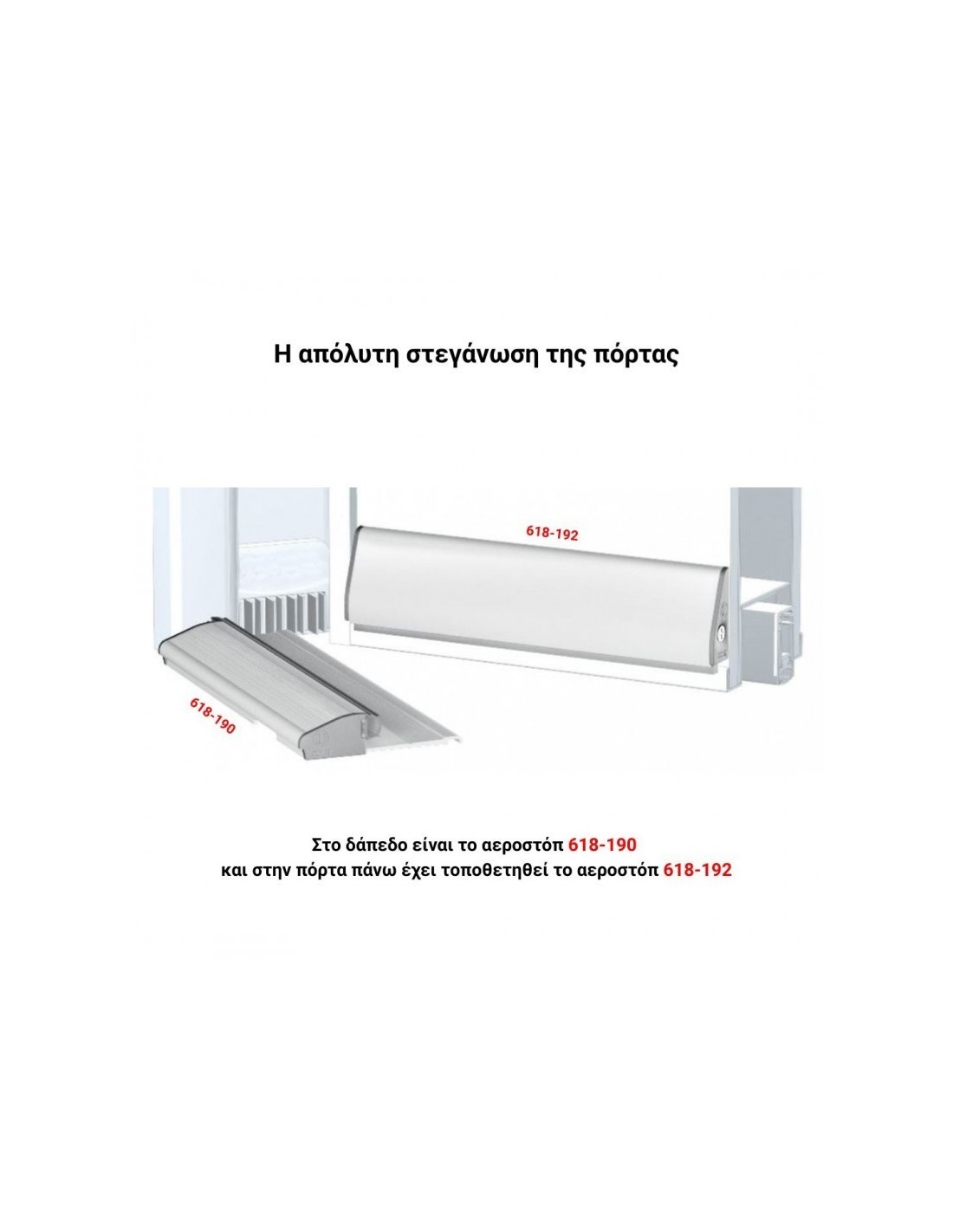

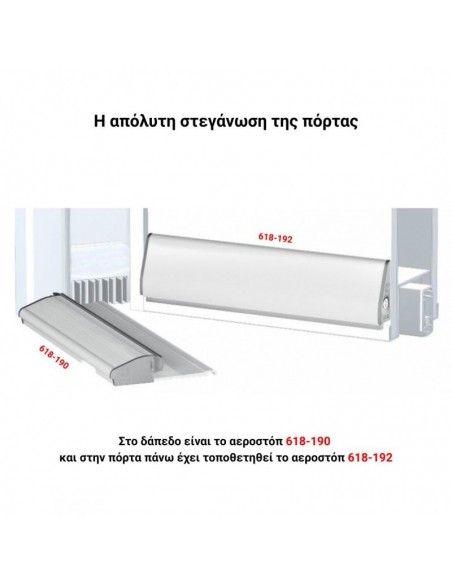

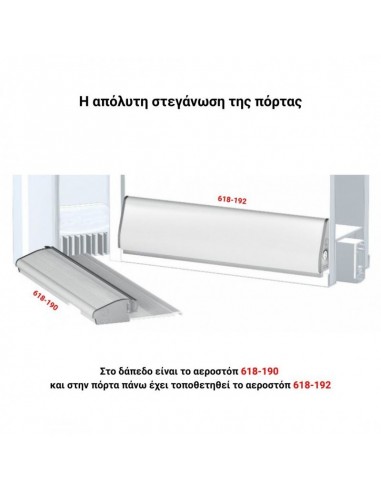

For optimal insulation, it can optionally be combined with the ULISSE LIGHT door seal (618-190) and the Floor Drop Seal (618-191).

FEATURES:

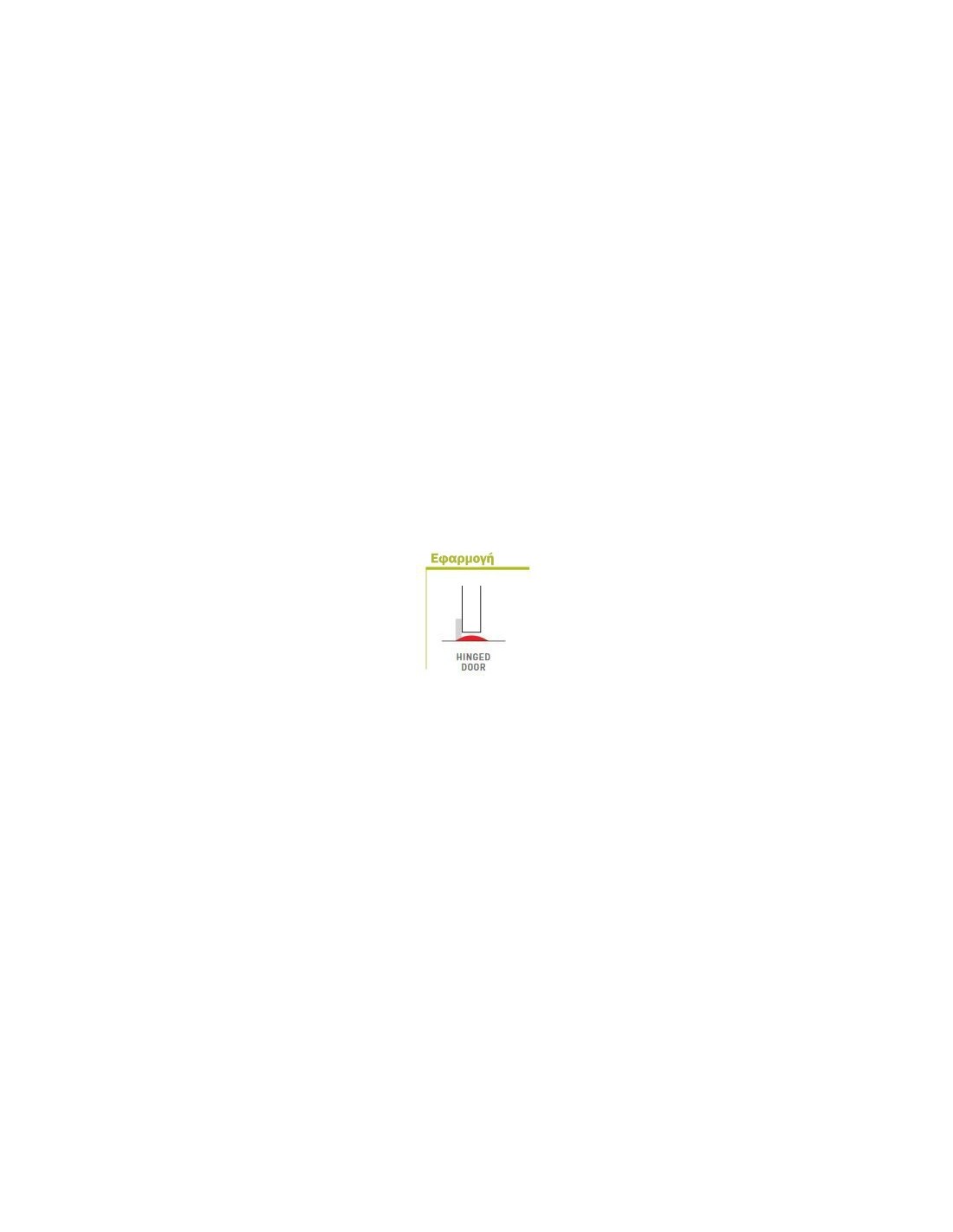

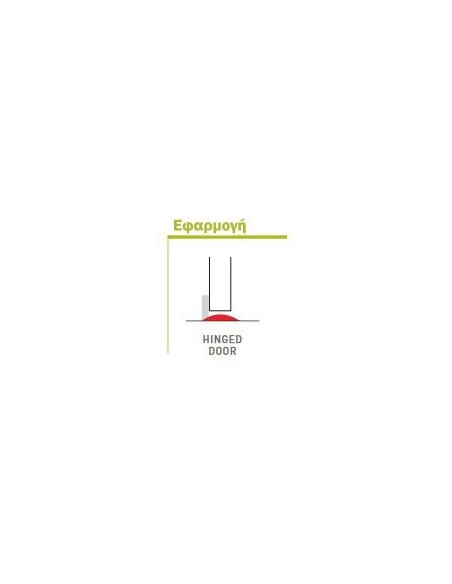

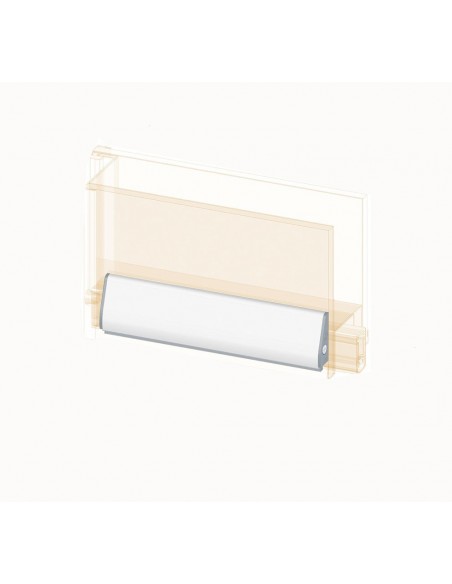

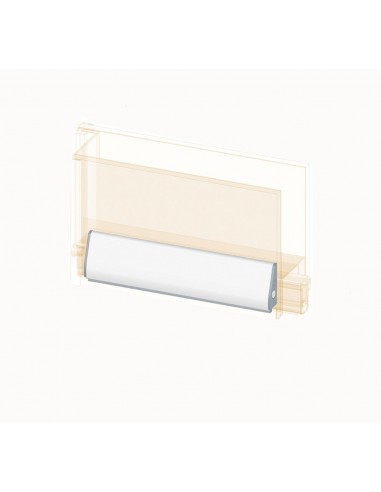

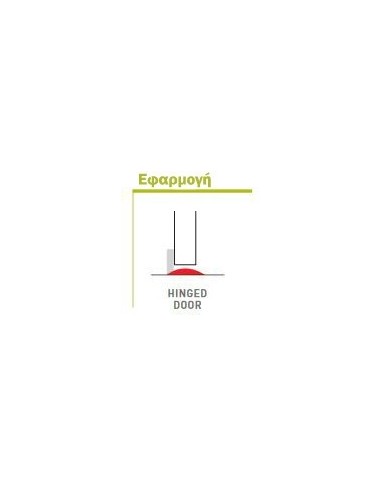

• Application: Installed on the door leaf.

• Length: 1030 mm (can be cut to the desired size).

• Installation: With screws or silicone (not included).

• Seals: High-quality silicone sealing gasket or tubular PVC.

• Technical Details:

  • 6060 T6 aluminium alloy profile.

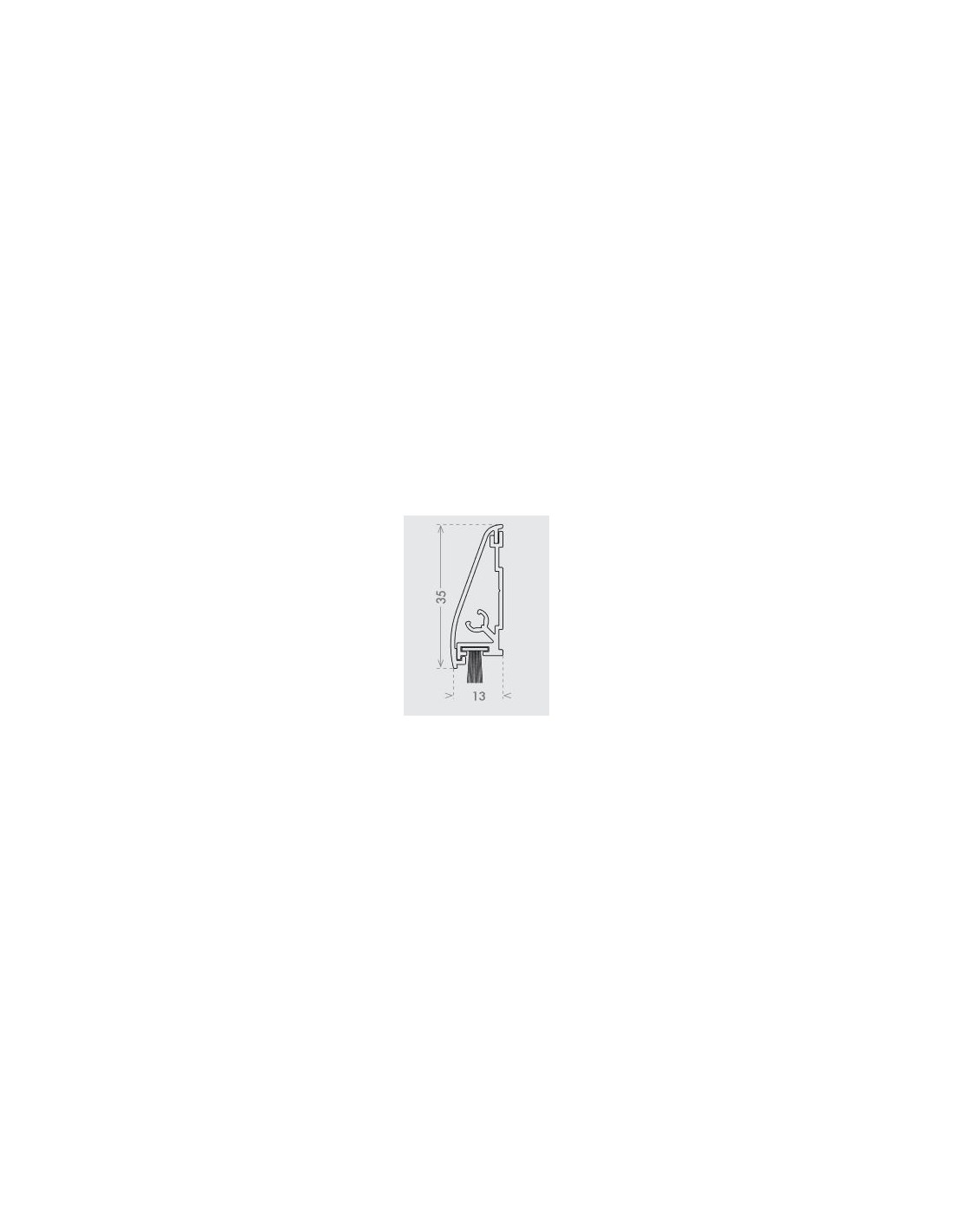

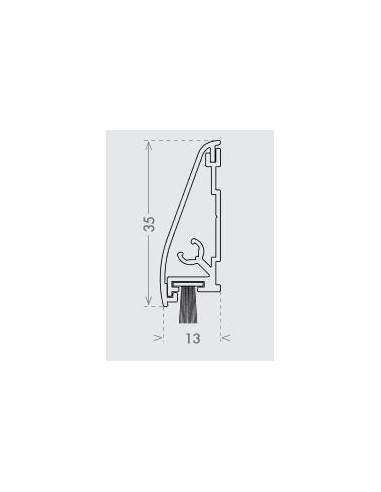

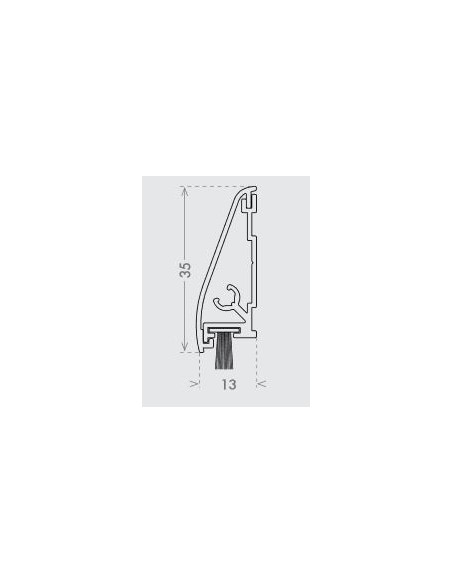

  • Profile height: 15 mm.

  • End caps reinforced with 20% fiberglass.

• Threshold Insulation for Floor and Door:

  • The floor threshold insulator is installed using silicone and screws.

  • Properly installed threshold insulators provide protection against smoke, water, wind, and noise.

  • The threshold can be installed after the door has been mounted.

  • 15 mm threshold height in compliance with EU standards.

Note:
The drop-down seal comes in a 1-meter length and can be trimmed to fit your desired dimensions.
