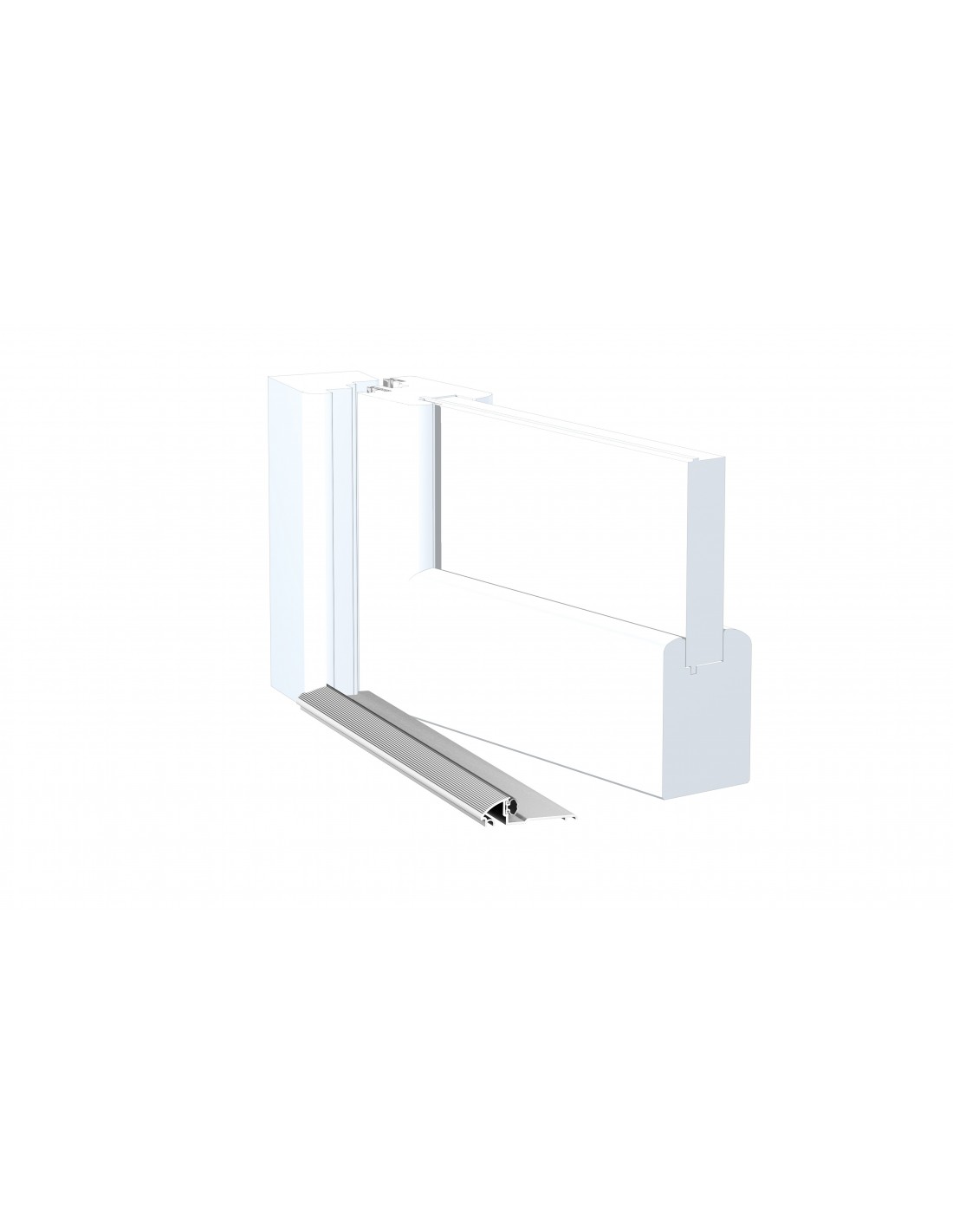

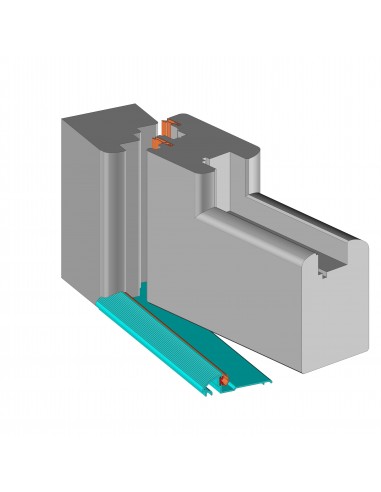

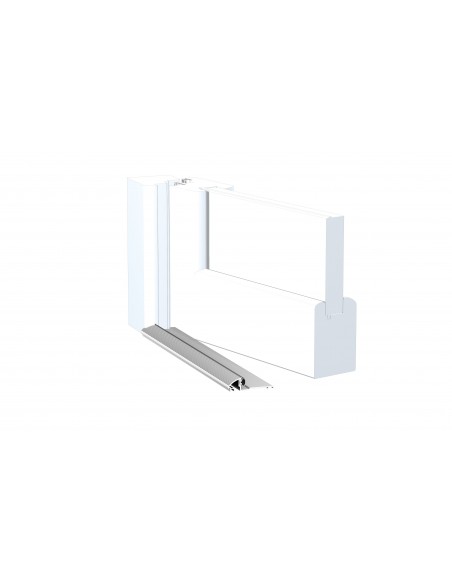

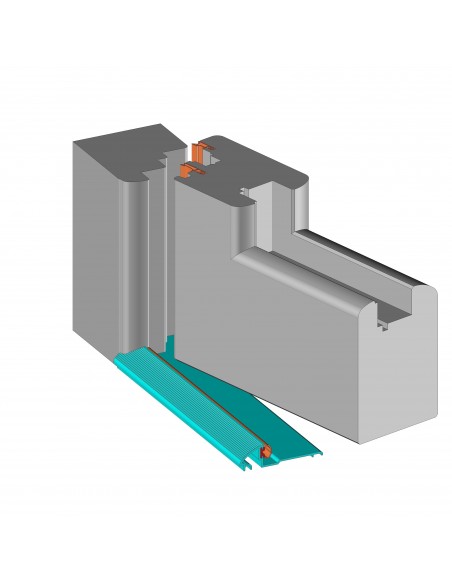

Door bottom draft stopper Ulisse Light

Description:

The new ULISSE LIGHT is a threshold which can be easily installed on leaf doors and protects from air, wind, water, insects and noise. It has a solid aluminium body which can be easily fixed on the floor with screws or silicone.
The threshold is 15 mm high and it complies with the european standards on disabilities access.
The threshold body has a chute with blanked holes which allows the water to flow away from the door and lateral endcaps are enclosed.
The aluminum profile is fitted with a soft self-extinguishing silicone seal that acts as a door stopper and provides protection from smoke, fire, noise. A tubular PVC seal is available upon request, in place of the silicone seal.

Optionally works (for better insulation) with the Floor Draft Stopper (618-192)

Application:

• Leaf doors.

Lengths:

• 830 – 1030 – 1230 – 1430 mm.

Trimming lengths:

• Maximum on both sides.

Fixing type:

• With screws or silicone (not included).

Seals:

• Self-extinguishing silicone or tubular PVC.

Technical characteristics:

• 6060 T6 aluminium alloy profiles.
• Profile height 15 mm.
• End caps in PA reinforced with 20% glassfibre.

Colours:

• Aluminium threshold: Silver F1 anodized.
• Threshold seal: colour grey, RAL7035.
• Lateral endcaps: colour grey, RAL7035.

The draft stopper is 1 meter long and can be cut to the desired length.
