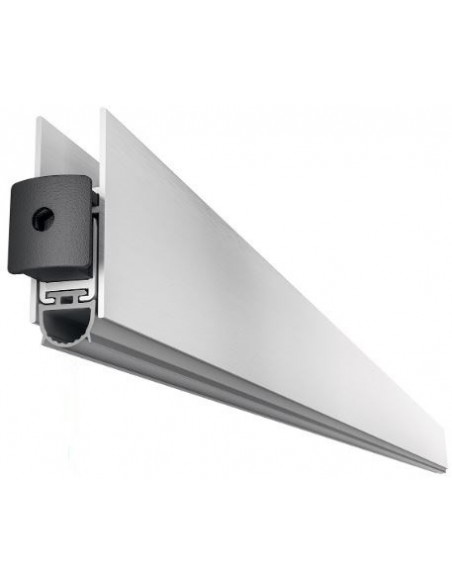

GLASS BOTTOM air-stop for glass doors

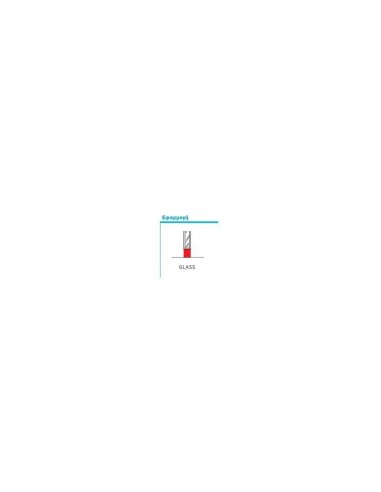

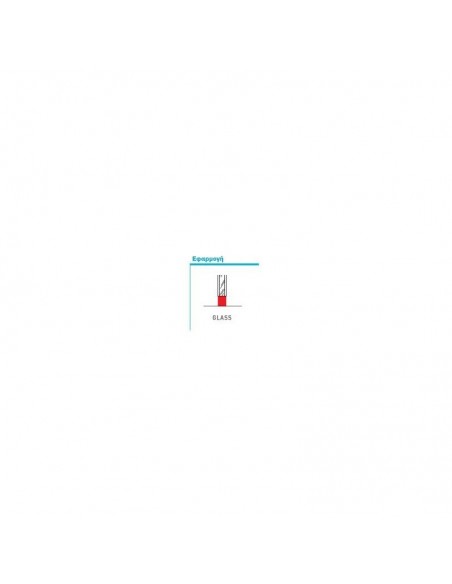

Application:

• Glass Doors (10 mm and 12 mm thick) with bottom rail.

Lengths:

•  830mm – 930mm – 1030mm

Trimming lengths:

• Up to 150 mm on the opposite side to the plunger. Length 330 can be shortened 50 mm, length 430 can be shortened 100 mm.

Fixing type:

• With high-strength double-sided adhesive tape.

Plunger and adjustment type:

• Nylon-clad steel plunger, adjustable with a 3 mm Allen wrench.

Seals:

• Balloon in self-extinguishing silicone.

Technical Characteristics:

• Graduated scissor action (seal drops on hinge side before lock side).
• Mechanism removable from hinge side after fixing.

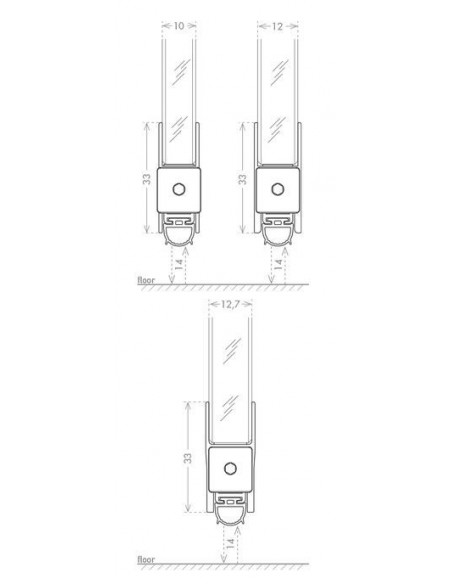

• 14 mm maximum drop.
• Galvanised steel flat springs and actuators in PA reinforced with 20% glassfibre.
• 6060 T6 aluminium alloy profiles.
• Closing plug included.

Certifications:

• Tested to 200,000 closing cycles.

Colours:

• Profile finishing in silver F1 anodized or stainless steel.
