Reference 618-162
€40.50
Tax included

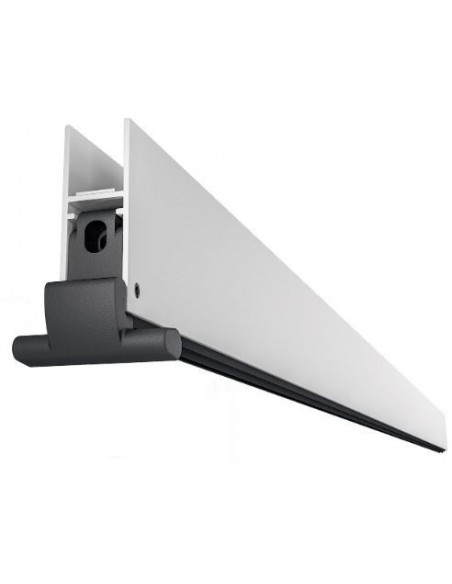

Air-stop GLASS BOTTOM SLIDE for glass doors.

Length

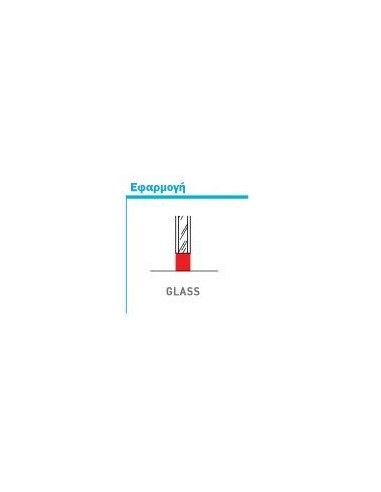

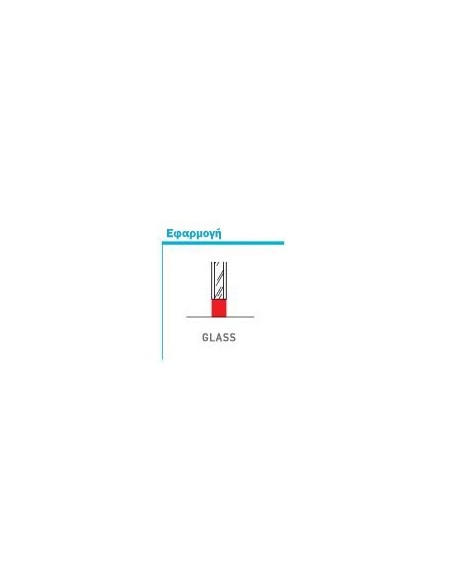

Application:

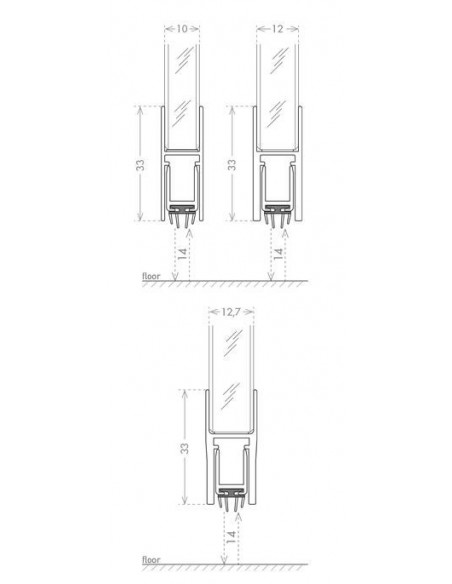

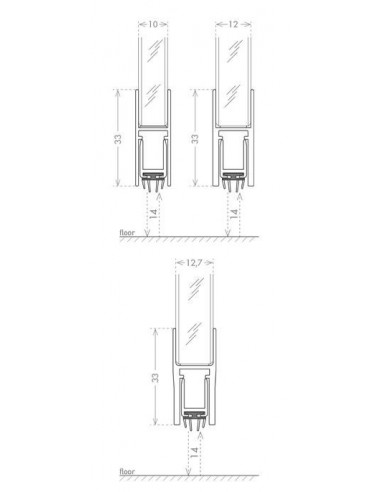

  • Sliding glass doors (10 mm and 12 mm thick), with bottom rail.
Lengths:
  •  830mm – 930mm – 1030 mm.
Trimming lengths:
  • Up to 150 mm on the opposite side to the plunger. Length 330 can be shortened 50 mm, length 430 can be shortened 100 mm.
Fixing type:
  • With high-strength double-sided adhesive tape.
Plunger and adjustment type:
  • Actuating lever on sliding door guide side.
Seals:
  • 4 fins in self extinguishing coextruded thermoplastic.
  • Brush made of silicone oil-impregnated polypropylene.

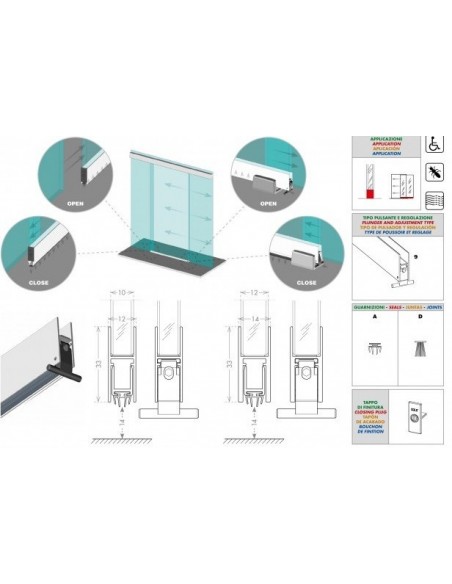

Technical Characteristics:
  • Graduated scissor action (seal drops on hinge side before lock side).
  • Mechanism removable from hinge side after fixing.
  • 14 mm maximum drop.
  • Galvanised steel flat springs and actuators in PA reinforced with 20% glassfibre.
  • 6060 T6 aluminium alloy profiles.
  • Closing plug included.
Certifications:
  • Tested to 200,000 closing cycles.
Colours:
  • Profile finishing in silver F1 anodized or stainless steel.
618-162
