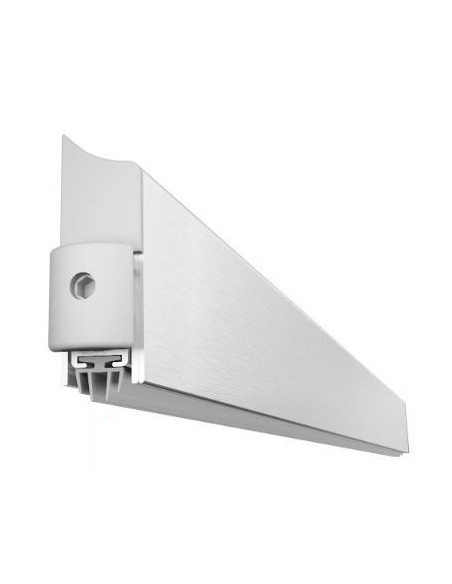

Automatic air-stop for doors
Automatic doorstoppers at an affordable price. It works by closing the door and through the mechanism has lifted when the door opens and drops when the door closes. In contrast to the simple air-stop, this automatic air-stop, not crawling, not difficult for the door opening and is clearly less wear, ie greater resistance.

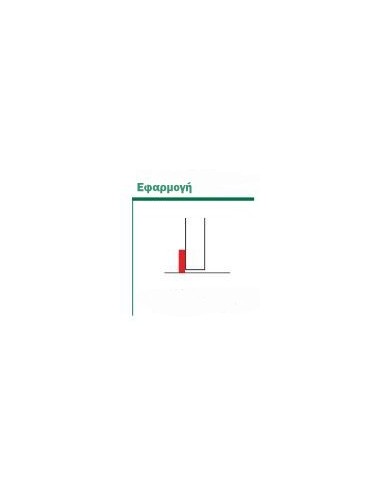

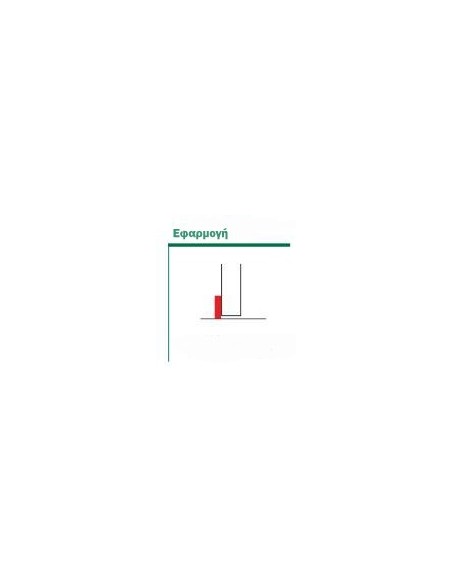

APPLICATION: ‐ All types of swing door.
TRIMMING LENGTHS: ‐ Up to 150 mm on the opposite side to the plunger. Length 330 can be shortened 20 mm, length 430 can be shortened 120 mm.
FIXING TYPE: ‐ With screws (supplied).
PLUNGER AND ADJUSTMENT TYPE: 1. Self-directing articulated metal plunger with nylon cap, adjustable with a 3 mm Allen wrench. 2.Nylon plunger for lock side operation, adjustable with a 3 mm Allen wrench. 3.Square section nylon plunger. 4.Steel plunger, adjustable with crosshead screwdriver, slotted screwdriver, and 6 mm spanner.
SEALS: A. 4 fins in self extinguishing coextruded thermoplastic. B. Balloon in self-extinguishing silicone. C. Coextruded tubular seal in selfextinguishing PVC or TPE. D. Brush made of silicone oil-impregnated polypropylene.

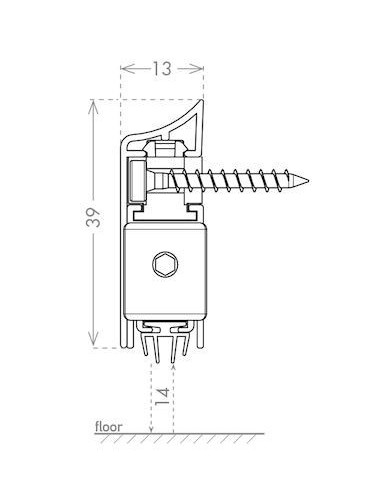

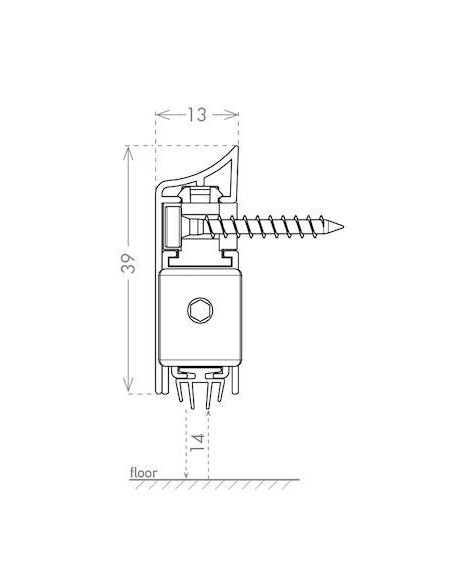

TECHNICAL CHARACTERISTICS: ‐ Graduated scissor action (seal drops on hinge side before lock side). ‐ 14 mm maximum drop. ‐ Galvanised steel flat springs and actuators in PA reinforced with 20% glassfibre. ‐ 6060 T6 aluminium alloy profiles. ‐ Activation kit and closing plug included.
CERTIFICATIONS: ‐ Tested to 200,000 closing cycles.
COLOURS: ‐ Available in natural anodized aluminum (silver).

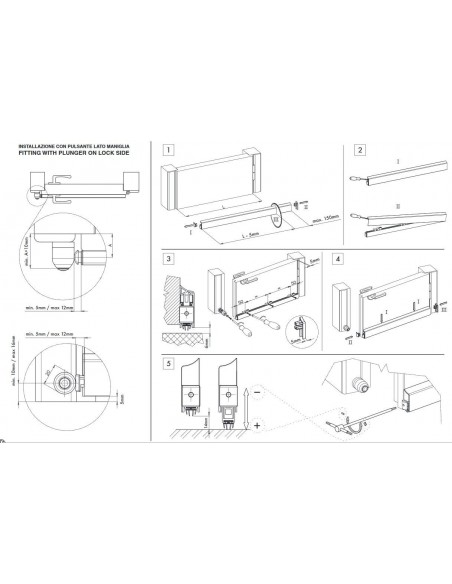

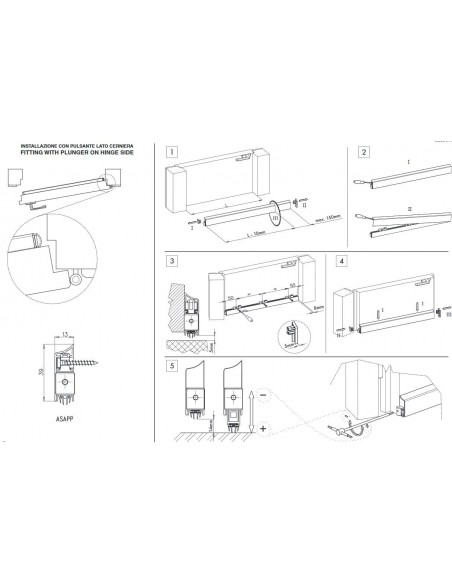

Here's a video with instructions for mounting:
618-174
