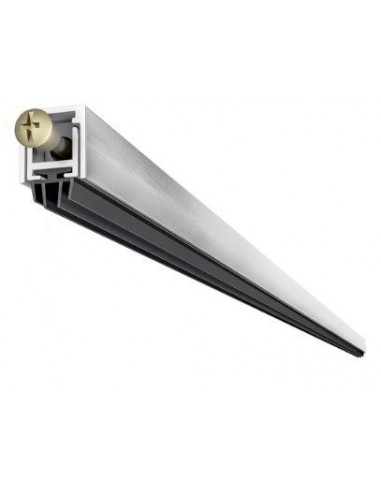

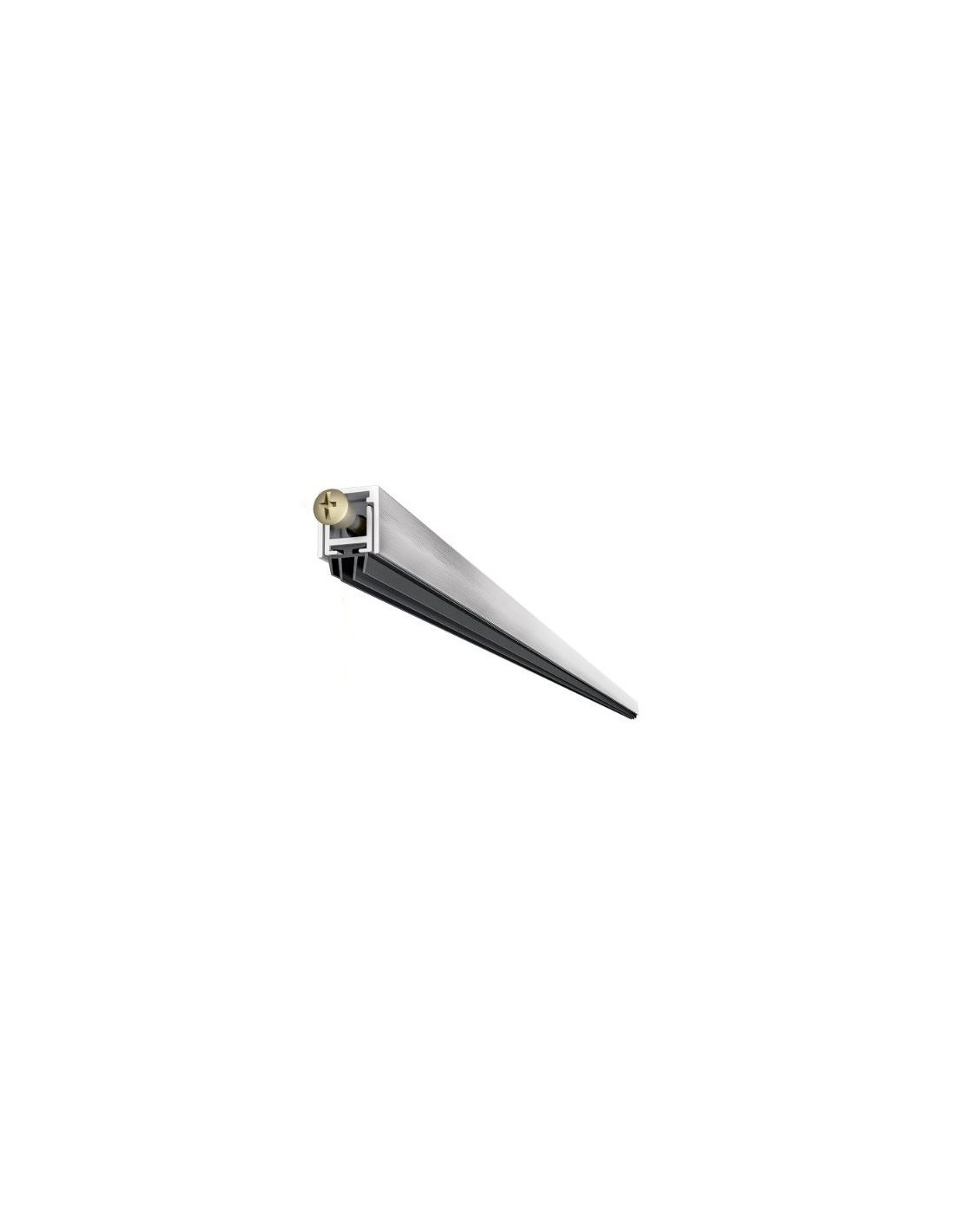

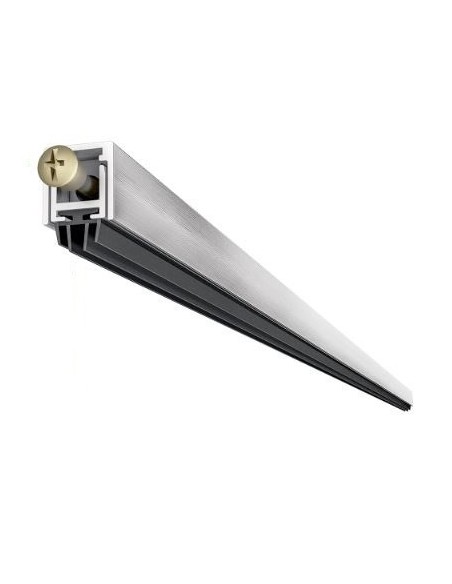

Automatic air-stop for doors

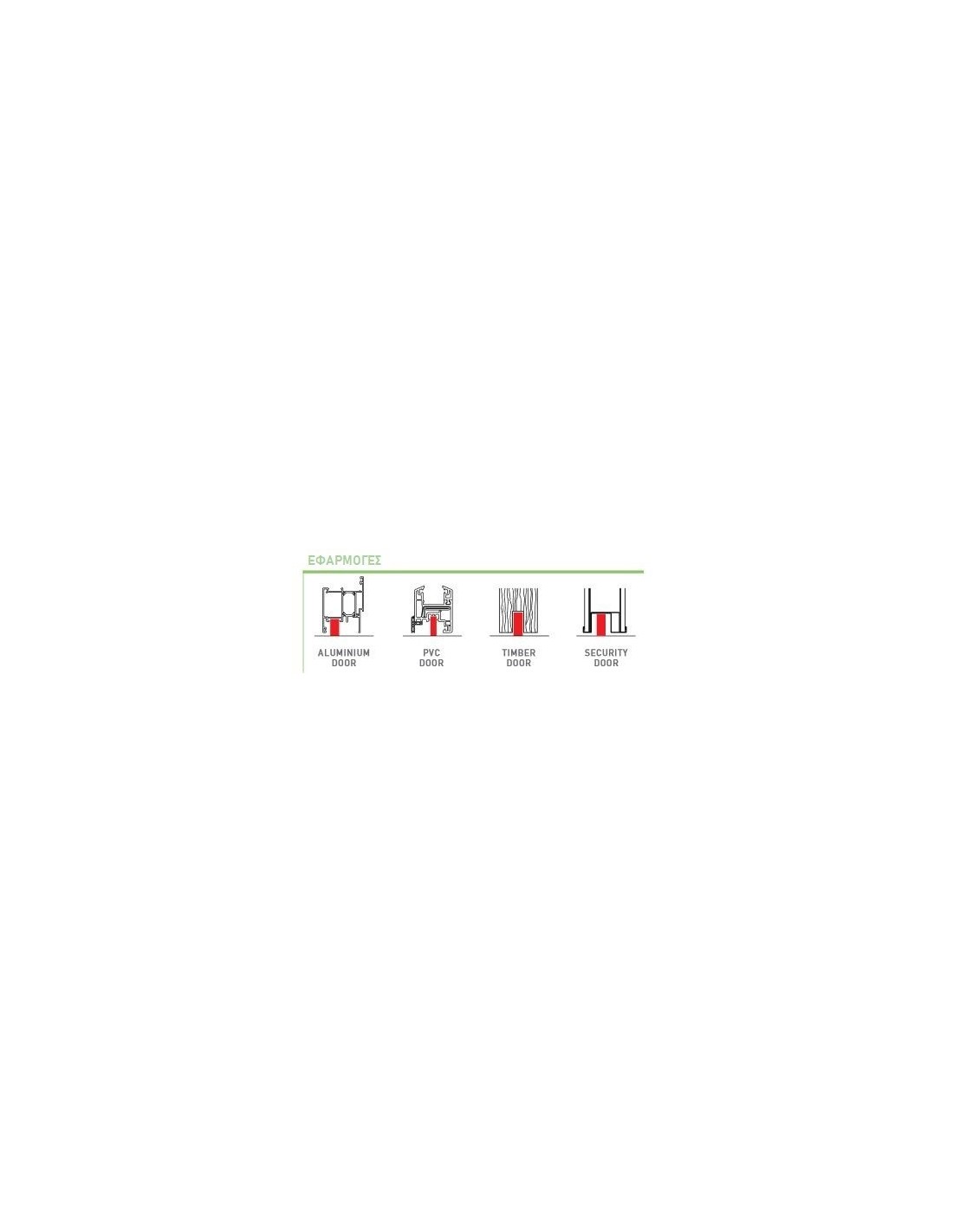

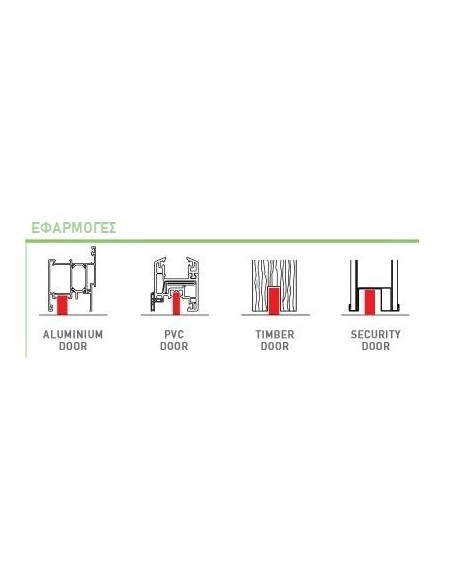

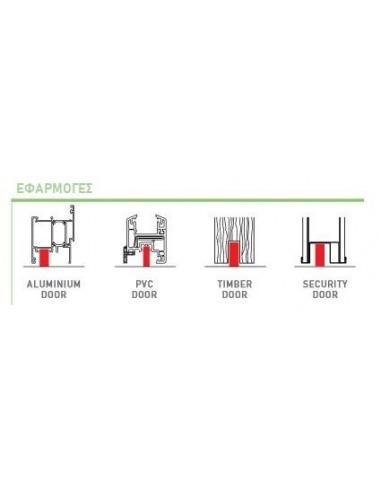

Application:

• Aluminium doors, timber doors.

Lengths:

• 830 – 930 – 1030 – 1130  mm.

Trimming lengths:

• Up to 150 mm on the opposite side to the plunger. Length 330 can be shortened 15 mm, length 430 can be shortened 115 mm.

Fixing type:

• With screws (not supplied).

Plunger and adjustment type:

• Steel plunger, adjustable with slotted screwdriver.

Seals:

• 4 fins Junior in thermoplastic.

Technical Characteristics:

• Graduated scissor action (seal drops on hinge side before lock side).

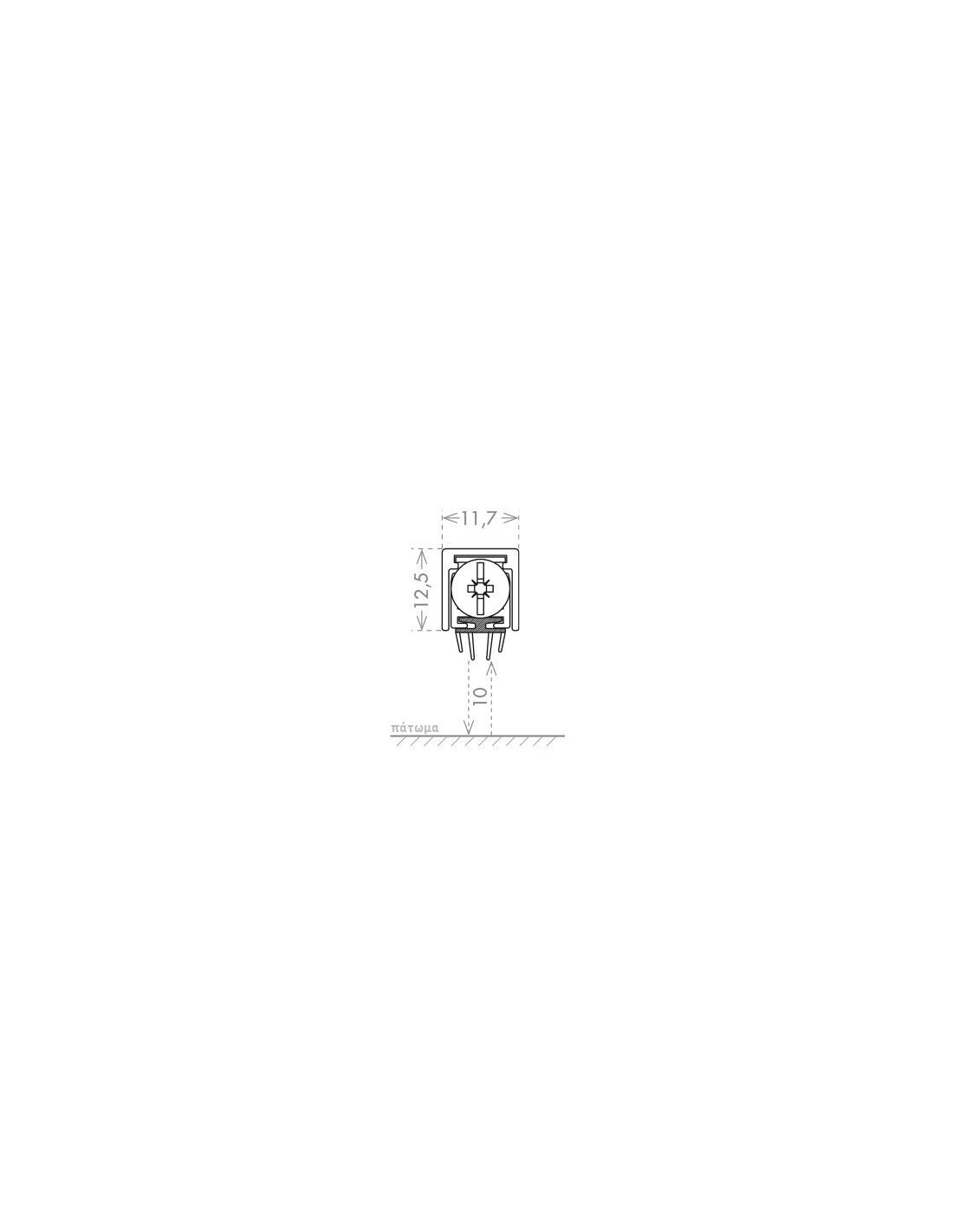

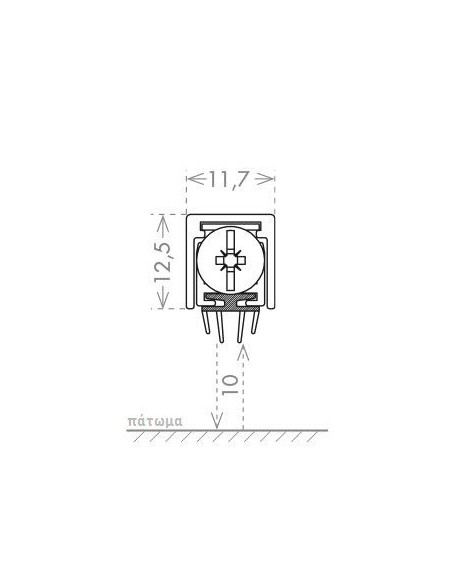

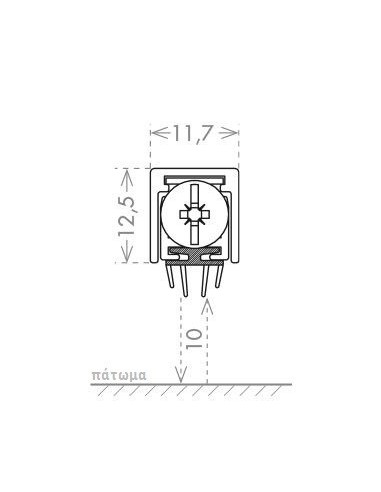

• 10 mm maximum drop.
• Strip type actuators.
• 6060 T6 aluminium alloy profiles.

Certification:

• Tested to 200,000 closing cycles.

Foldable Automatic Drop-Down Seal – Wind Blocker for Aluminium / Wood / PVC Doors – Small

The drop-down seal – wind blocker seals gaps in doors and windows, keeping outside temperature and dust out, providing insulation and resulting in energy savings.

Technical Characteristics:

It operates with the closing of the door and, thanks to its mechanism, lifts when the door opens and drops down when the door closes. Unlike standard seals, this automatic drop-down seal – wind blocker does not drag, does not obstruct door movement, and has significantly less wear, offering increased durability.

The seal – wind blocker provides insulation against wind, dust, and noise.

Excellent fit for all door systems.

Automatic foldable insulator with single plunger.
Adjustable pressure for optimal sealing.

Suitable for metal / wood / PVC doors.

Maximum drop: 10 mm.
6060 T6 aluminium alloy profile.

Dimensions (length):

830 – 930 – 1030 – 1130 mm
(Other lengths available upon request.)
Each size can be shortened by up to 100 mm only.
For example, if the door width is 920 mm, you should order the 930 mm seal, since the 1030 mm or 1130 mm versions cannot be trimmed down to 920 mm.

Certification:
Tested for 200,000 closing cycles.

Finish:
Natural anodized aluminium (silver).

Suitable for:
Watertight sealing.
