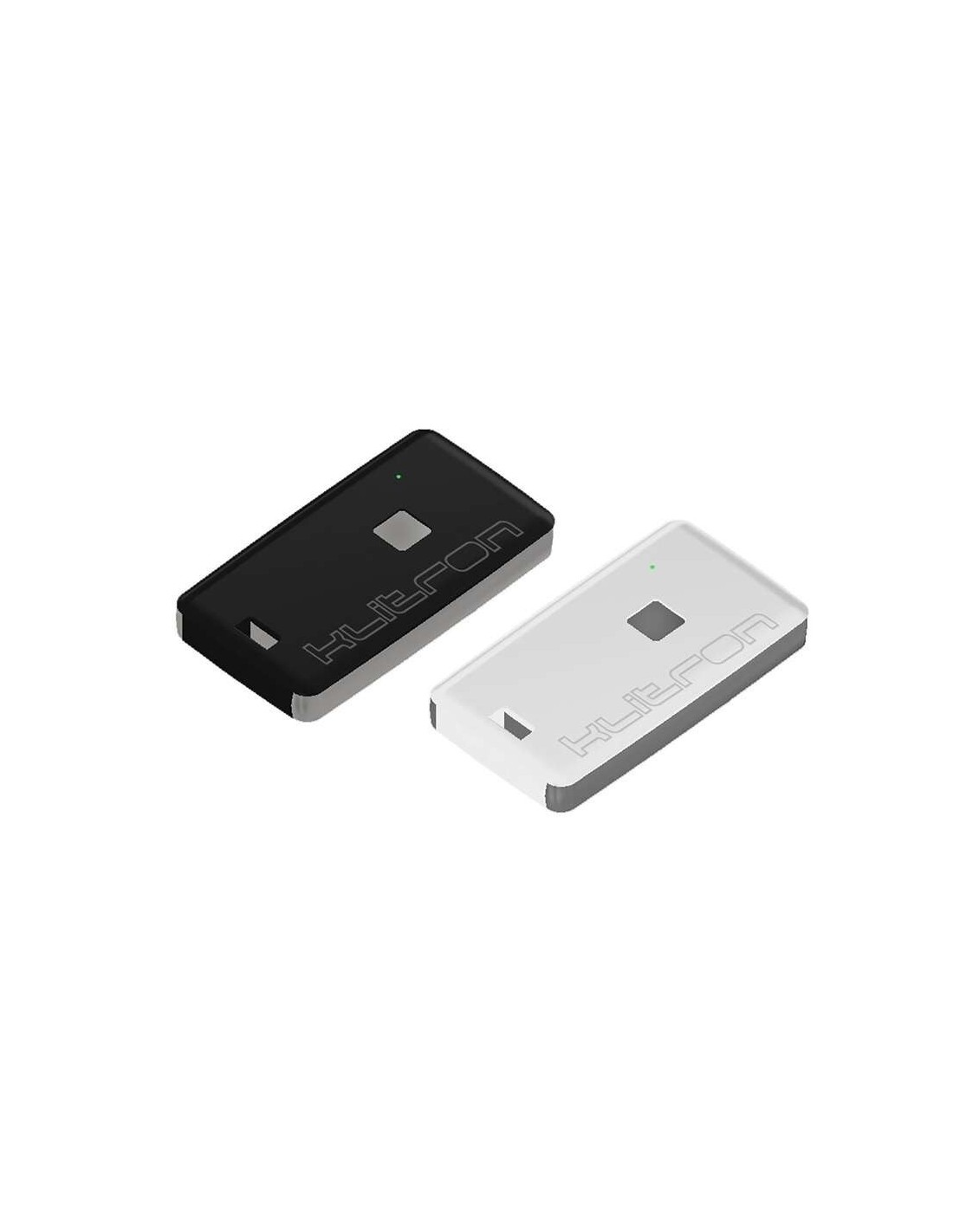

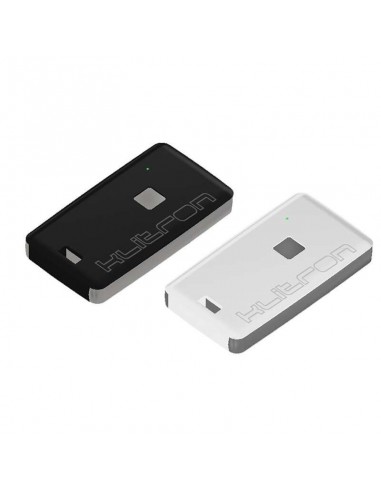

Klitron FOB lock control

The original package already has the battery installed and the Klitron fob is ready for planning and use.
Description

The Klitron fob remote control has a dual-use button for handling it, and a three-color status led * * * which informs us about its operating status and battery status.
Programming

The programming of a Klitron fob can only be done by the administrator of each lock. Each fob can handle a single Klitron device. For each Klitron device we can program as many fobs as we want. Each fob has its own unique identity and its actions during operation are recorded in detail: name - date / time - command - battery level.

The KLITRON administrator, having already login to the cloud, will press the "Fob" option. In the new screen that will appear, it will press the “+” symbol and at the same time it will press and hold the fob button for 3 seconds until the LED becomes instantaneous *. The unique identity of the fob will appear on the screen and the process will be completed as soon as we click "Submit". From this screen we can enter the name of the fob holder if we wish.
Use

Simple use of the fob, such as unlocking, requires a short press of a button (<1sec). Once this is done, the status led will become * if the battery is good, or * if the battery needs replacement. Then the connection to the lock will be made, the check for the authorization and finally the execution of the command.

Access details name Fob - date / time - command - battery level are stored in the lock and will go up in the cloud as soon as one of the users handles the smartphone.
Note:

Repeating the programming process in the same fob having chosen a different lock in which we are administrators, will result in the automatic transfer of the fob to the new lock.
