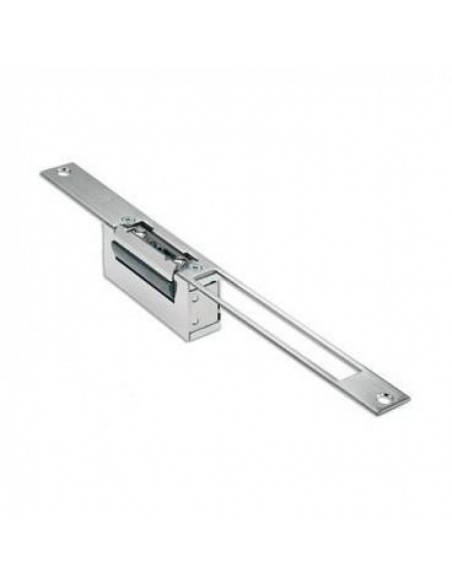

Narrow electric strike 1411-910 JIS, fail safe, adjustable

For security doors, emergency exits, banks, etc.
Remains locked while powered, and unlocks when power is cut.
Specifically designed for narrow aluminum and PVC profiles, requiring minimal cutting of the frame.

Voltage: 12V DC
Reversible: Suitable for both left- and right-handed doors
Adjustable latch: up to 4 mm
Finish: Grey
Faceplate dimensions: H 250 mm x W 22 mm x D 3 mm
Body dimensions: H 67 mm x W 16.5 mm x D 28.5 mm
Weight: 0.300 kg
Manufacturer: Nadal-Badal S.A., Spain

Advantages – Operation

The electric strike is temporarily released when activated by the intercom. The locking function automatically resets after the door is opened and closed again.
It features an adjustable latch keeper (adjustable up to 4 mm) for improved door sealing and security (easy to install).

Suitable for main building entrances.

Connects to intercom or video door entry systems.
Very easy to install and operates on 12–24V AC/DC.
High strength and build quality, flush-mounted, and easily reversible for left- or right-hand door orientation.
Equipped with an on/off mechanical release switch, allowing the door to remain open when toggled—ideal for situations requiring frequent access (e.g., moving).
Complies with CE standards.
