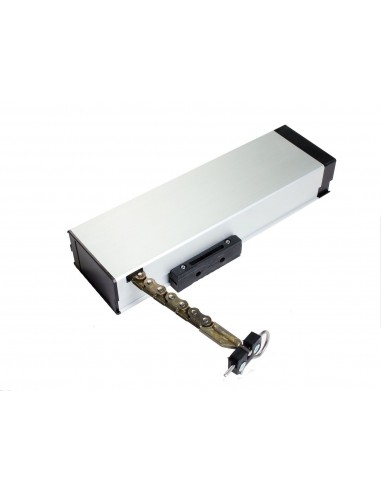

Electric motor mechanism with chain recall and display for windows and skylights Sintesi 2000

Electric motor mechanism with chain recall and display for windows and skylights Sintesi 2000.

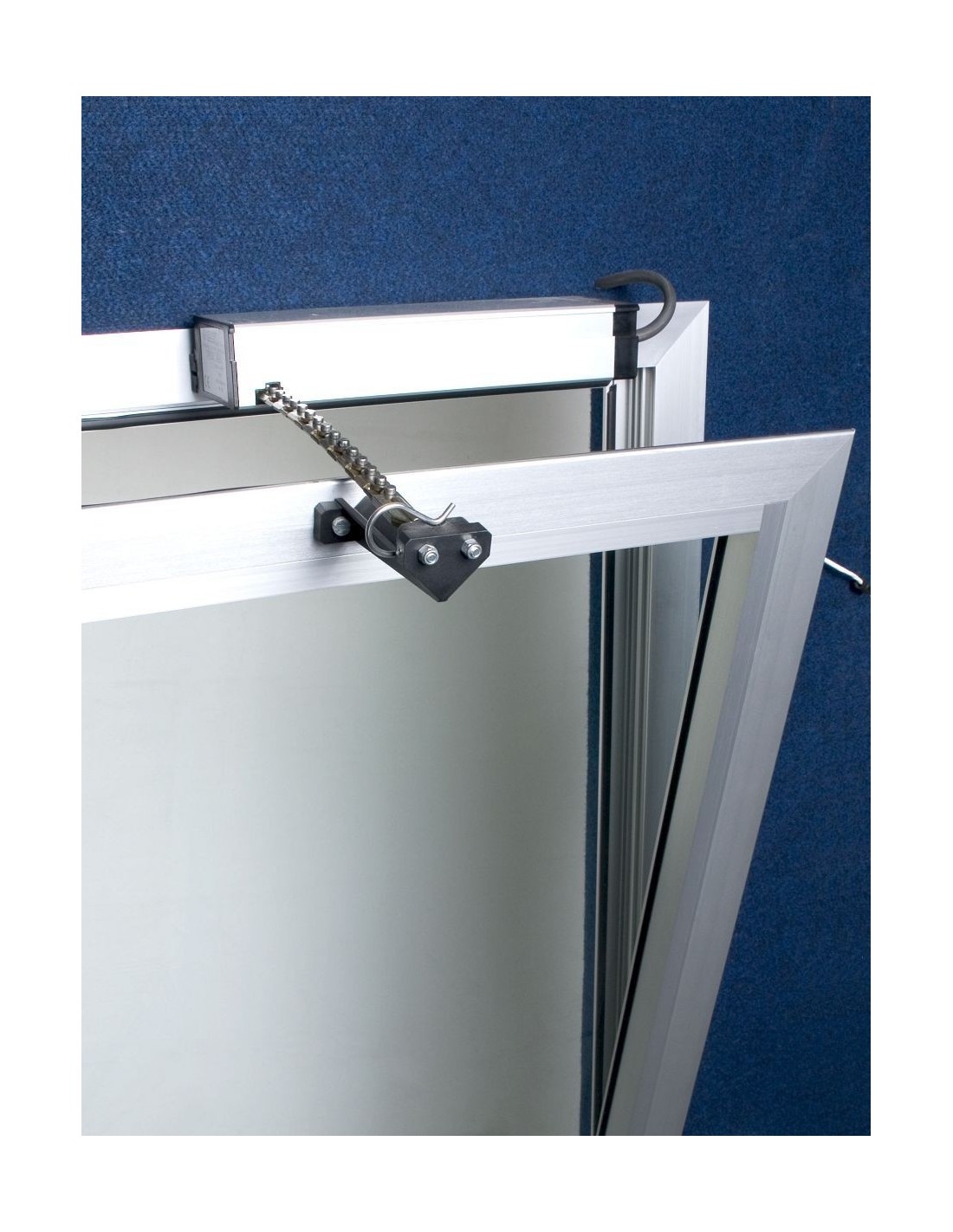

Suitable for reclining and projected windows and skylights made of aluminum, wood, iron and plastic.

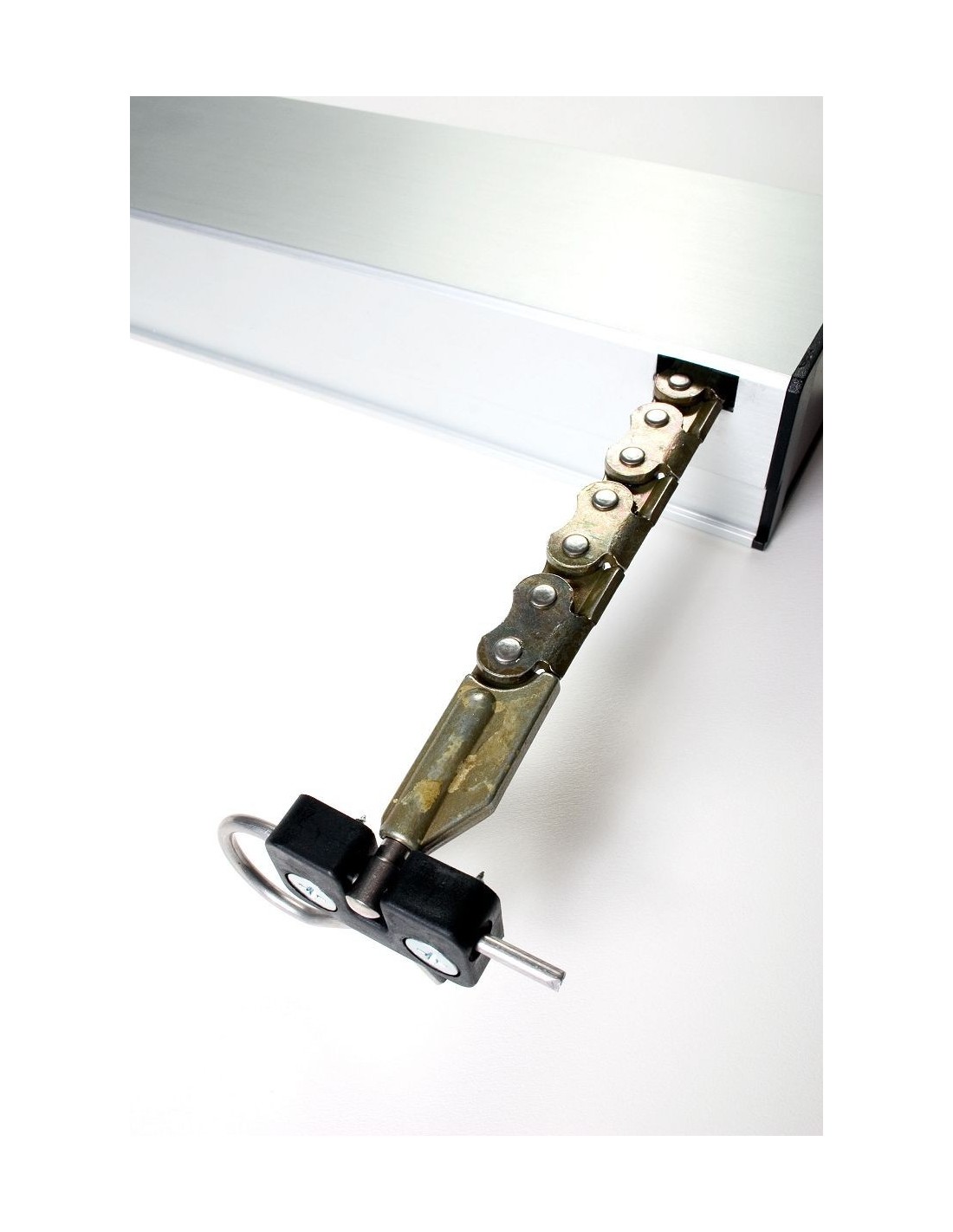

The gear housing is made of aluminum and the internal mechanism consists of a single chain.

For the overall path of the chain have both 250mm and 380mm options and we can determine when the connection mechanism.

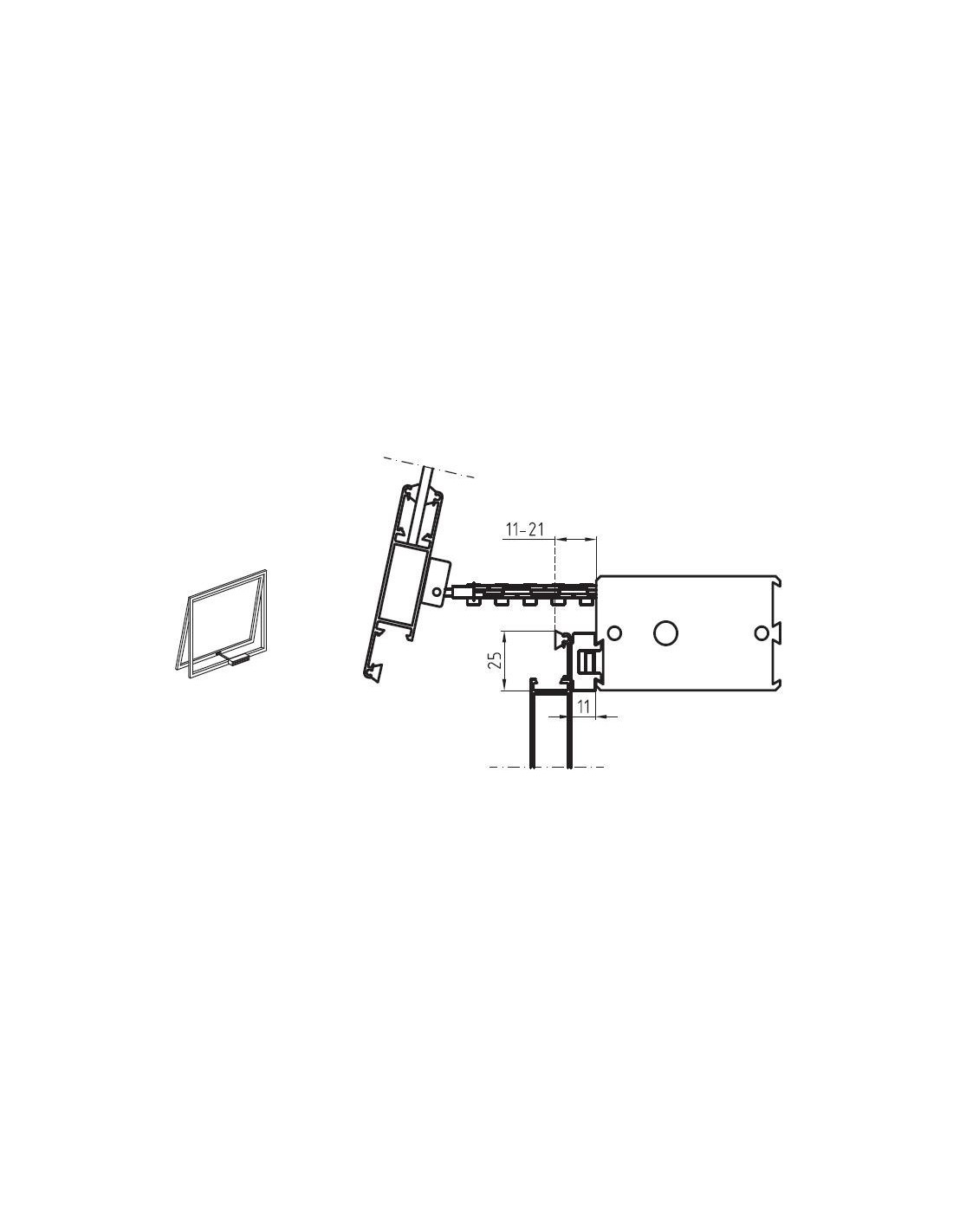

For projecting windows is better to choose the path of 250mm for better wind resistance.

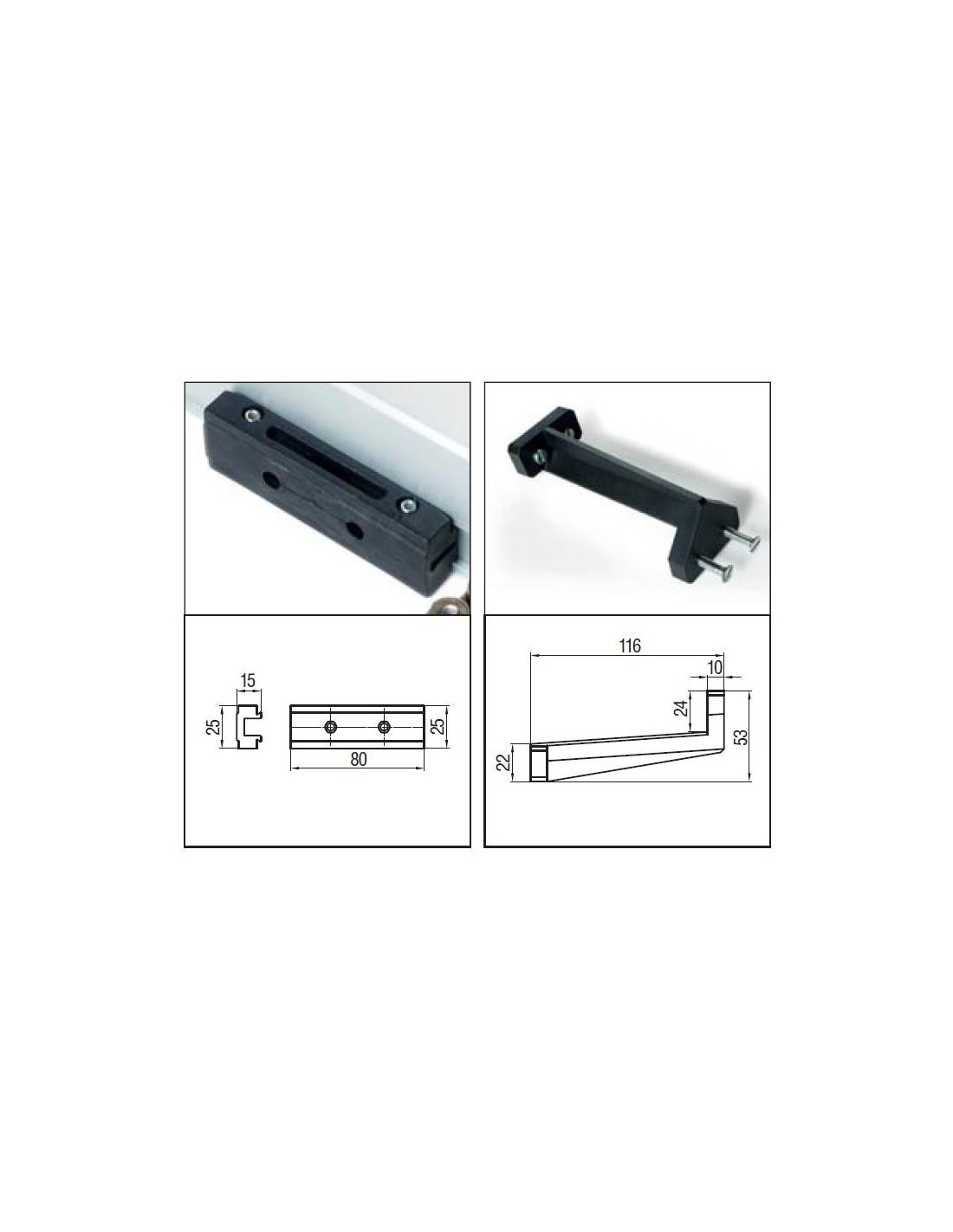

It has three channels in which the sliding support mechanism and easy locking system can be installed from the window.

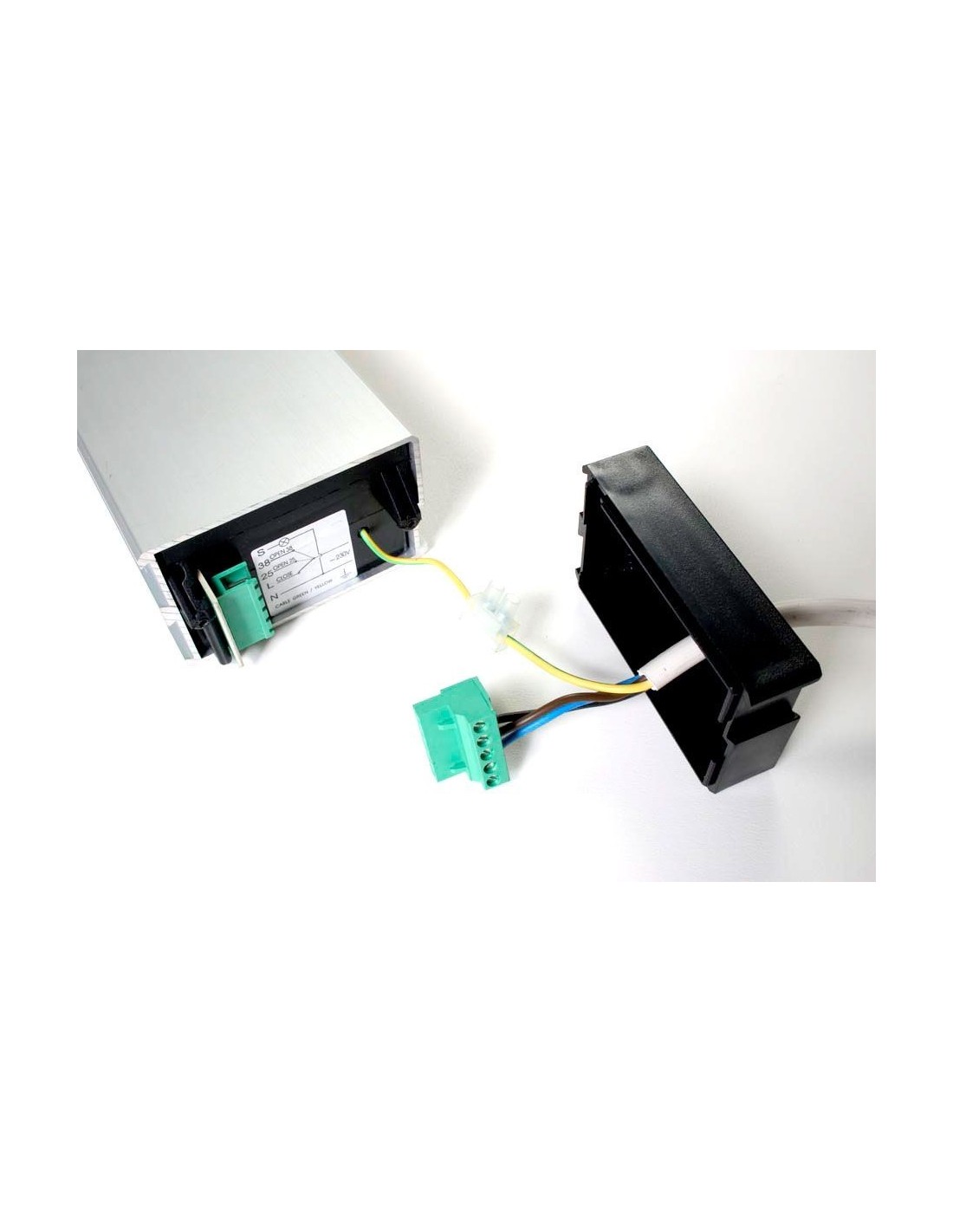

The special removable plug allows a very quick and easy connection.

Power supply: 230 Vac.
Electrical connections: 3 wires + earth.
Path: a choice of 250 mm / 380 mm.
Pushing force: 180 N (stroke 250 mm) / 90 N (stroke 380 mm).
Traction force: 300 N.
Speed: ~ 40 mm / sec.
Absorbed power (with maximum load): 0.65 A.
Parallel connection: YES.
Terminals: Small switches.
Safe Stop: Thermal.
Protection class: IP 20.

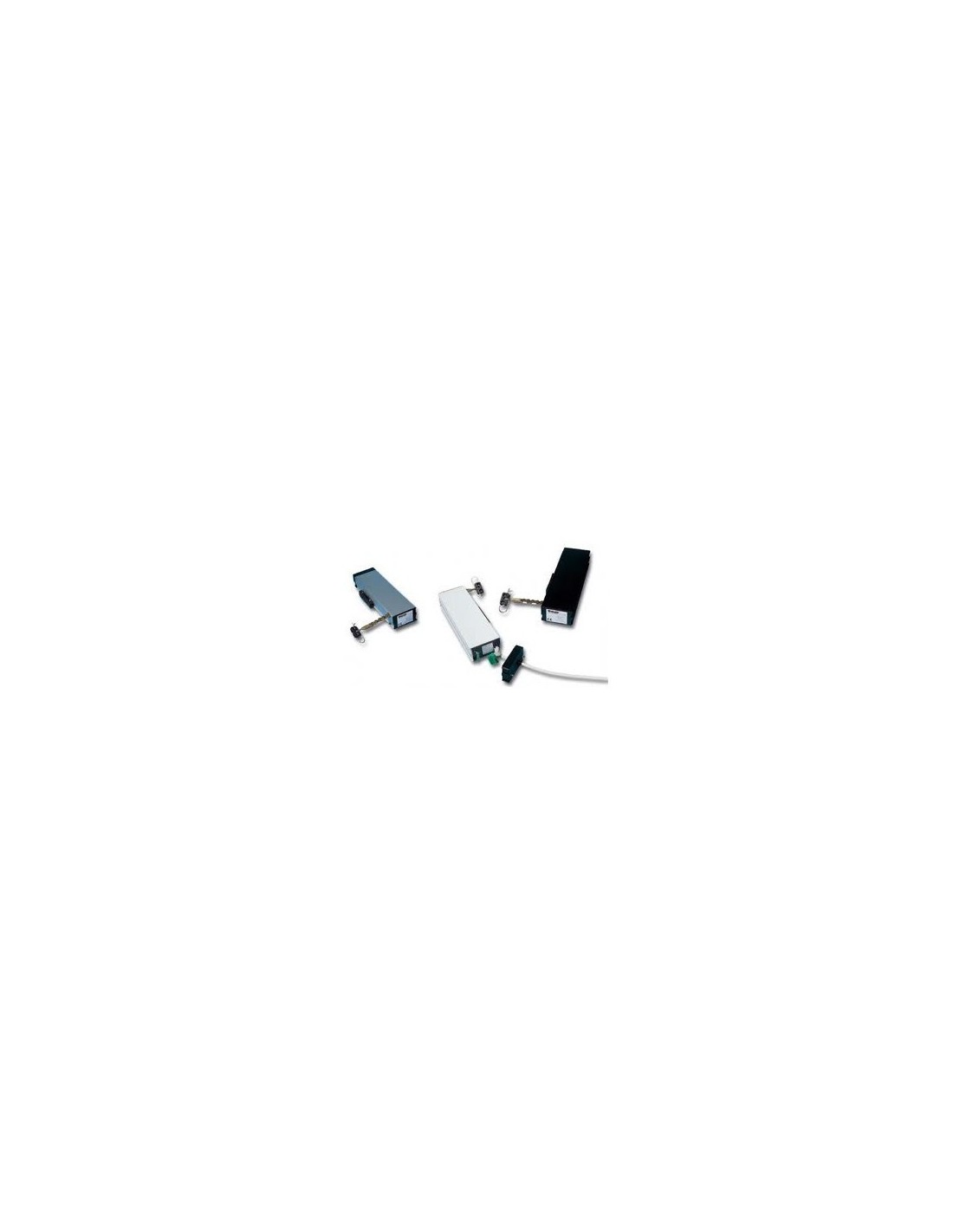

Colors: Silver anodized, black anodized dark and white RAL 9010.

The package includes the mechanism, the stud and the plastic arm for reclining.
