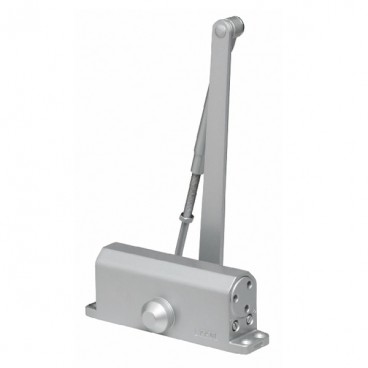

Mechanism doors RYOBI door closer 8803

Mechanism doors RYOBI door closer 8803

Japanese top quality construction and function return mechanism .

FEATURES

    Made of aluminum.
    Easy to install and set up converting to the right or left depending on the door .
    Suitable for doors up to 70 Kg and maximum leaf width 105cm
    Set screws 2 speed a) closing speed of the door b ) braking of the door before closing .
    Turnover over 500000 gating .
    The package included installation instructions .

The mounting mechanism is easy and carried out as follows : place the specific pattern placement , included in the package , having as a guide the position of the hinges on the door . By doing this we marked the positions of which must be holes . Thereafter the screw mechanism and the arm after making sure that the position of the arm is vertical with respect to the door. After following the adjustment mechanism those concerning the speed at which it closes the door to brake this is done with small turns in screws on the side of the mechanism .

 CAUTION : Under no circumstances should you completely unscrew the screws because if you run even a little oil from the inside of the device loses its pressure and does not readjust .
