Domus falling latch security lock 3 Point 30 mm, Ball

3-Point Knife-edge Security Lock 30mm with Pin Mechanism

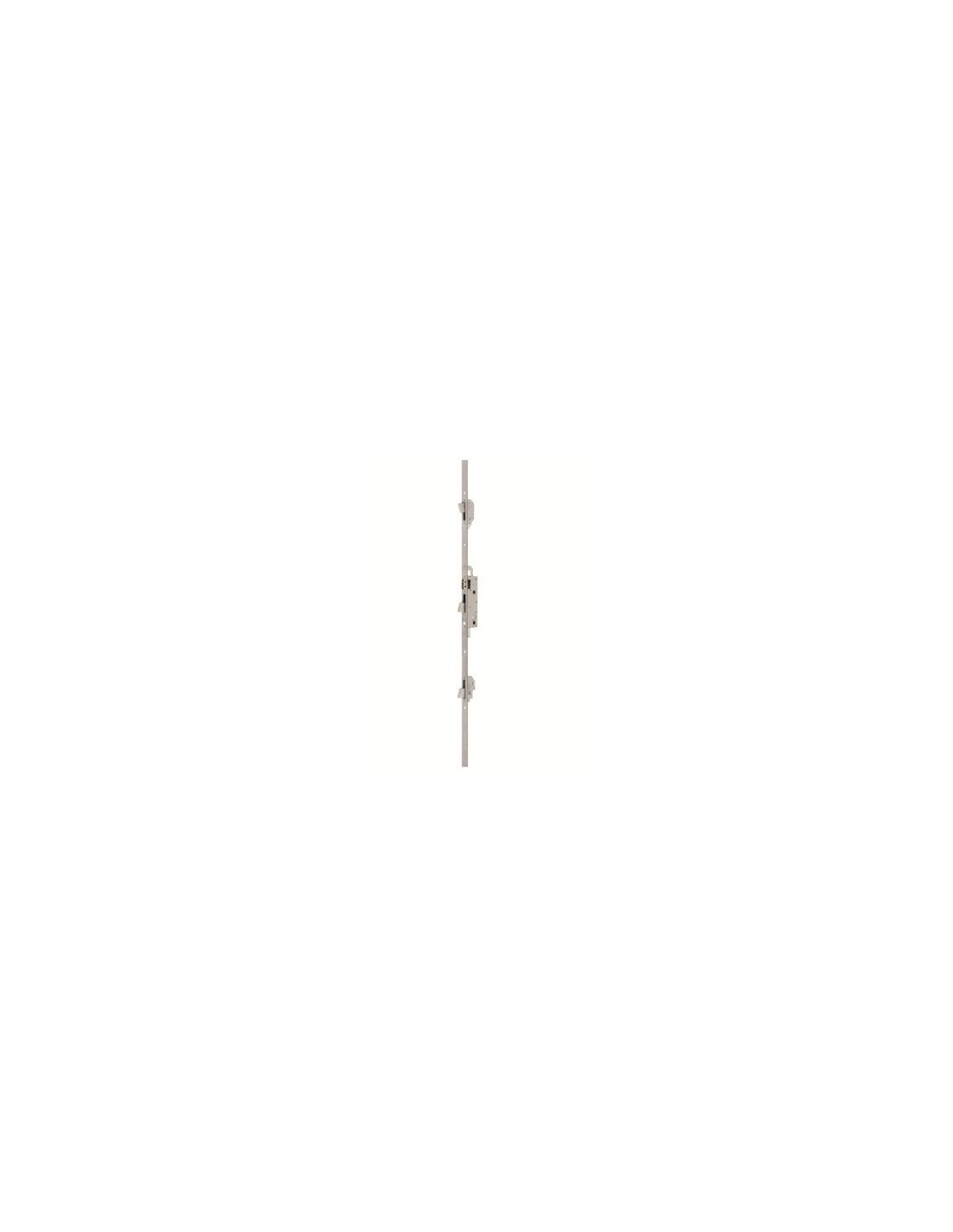

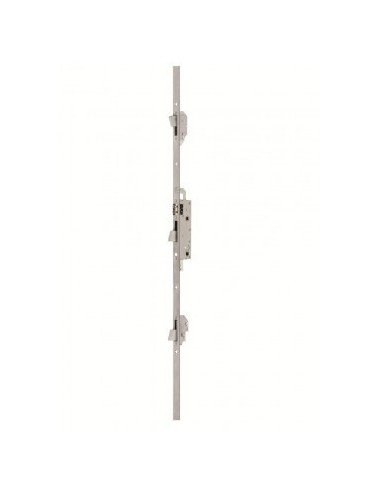

The 3-point lock with a 30 mm center and pin mechanism features three locking points with knife-edge bolts and is suitable for all aluminum series. It offers enhanced three-point security. The three locking points extend 25 mm with a single turn of the cylinder for increased protection.
The height of the lock is 2.25 m (it can be cut to the desired length).
The 3-point lock comes with three adjustable strike plates (sold separately).

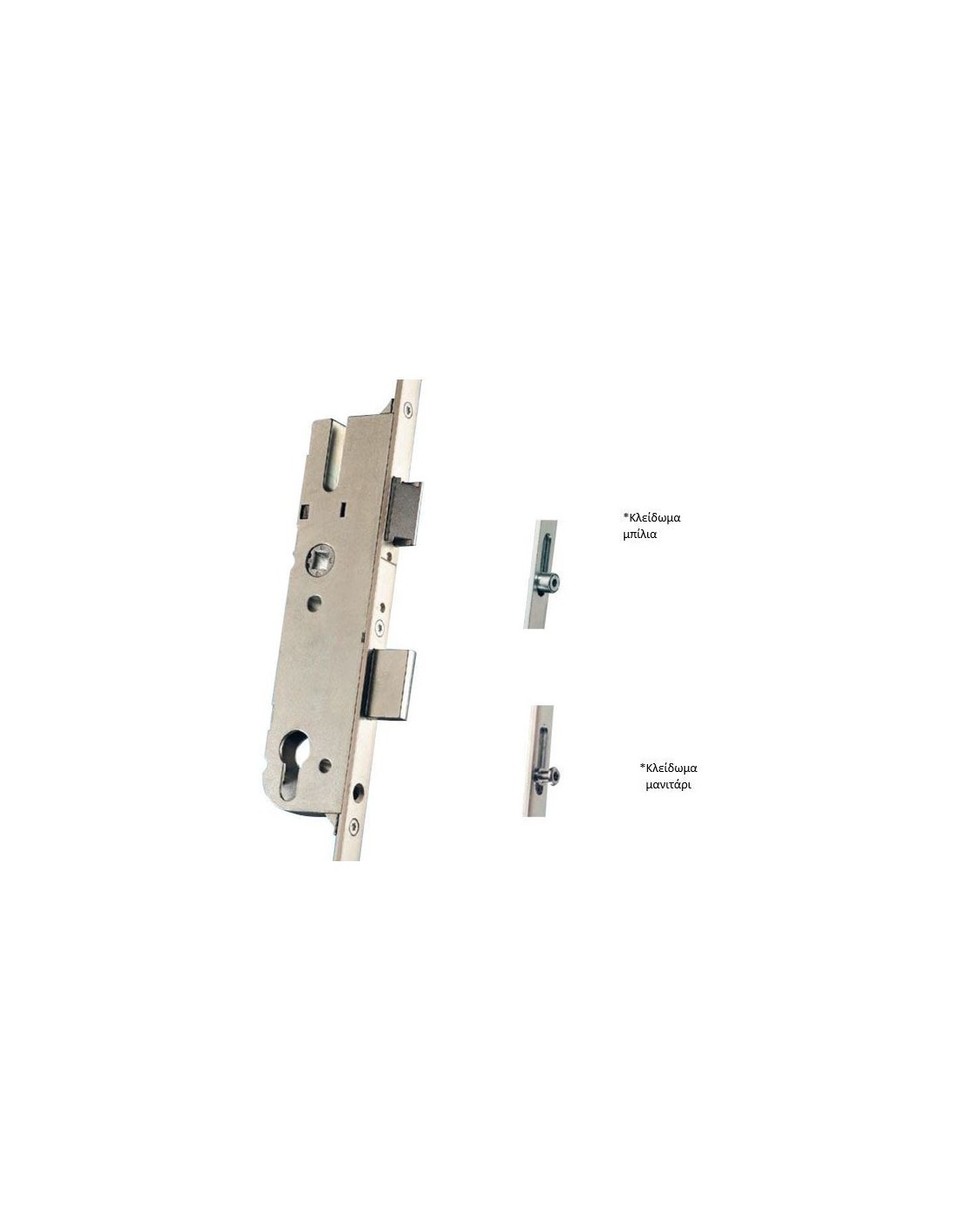

*Due to the production of new models, the pins may be replaced with mushroom bolts; however, their function remains unchanged.

*The dimensions of the pins or mushroom bolts may change without notice for certification reasons; all you need to do is adjust the strike plates.

Since the basic dimensions of the 3-Point Knife-edge Security Lock 30mm with pin mechanism do not differ from other Domus locks or those commonly available on the market, it allows for very easy replacement in aluminum, PVC, or wooden doors.

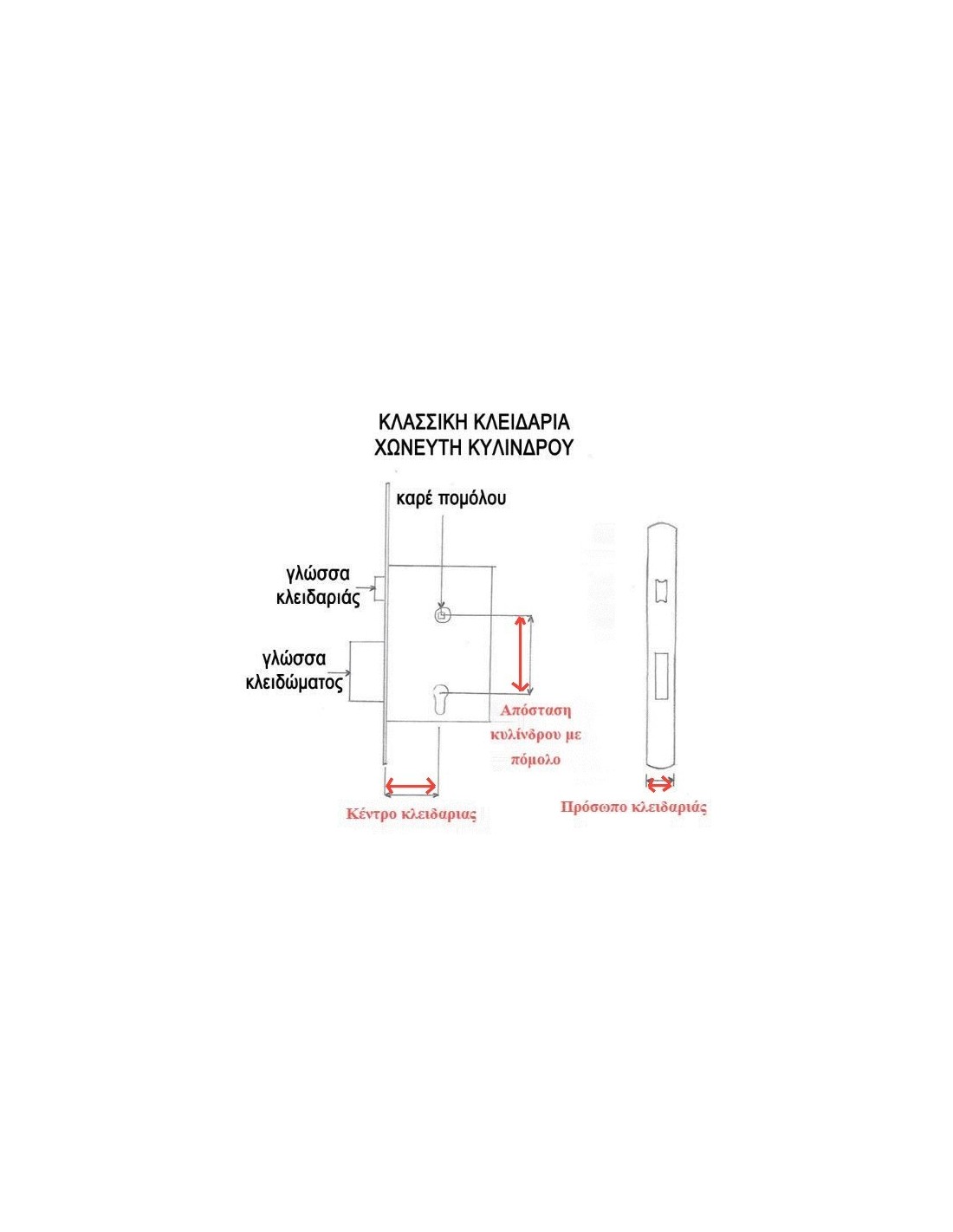

Technical Specifications

• Cylinder center: 30 mm (A)

• Cylinder-to-handle center: 85 mm (C)

• Lock faceplate: 24 mm (D)

Code  | Description                                          | A mm  | B mm | C mm | D mm
95430 | 3-Point Lock 30mm, with pin mechanism | 30       | 45       | 85       | 24
